Figure 6

ID: ZDB-IMAGE-250215-58
Source: Figures for Xia et al., 2025


Figure Caption

Figure 6

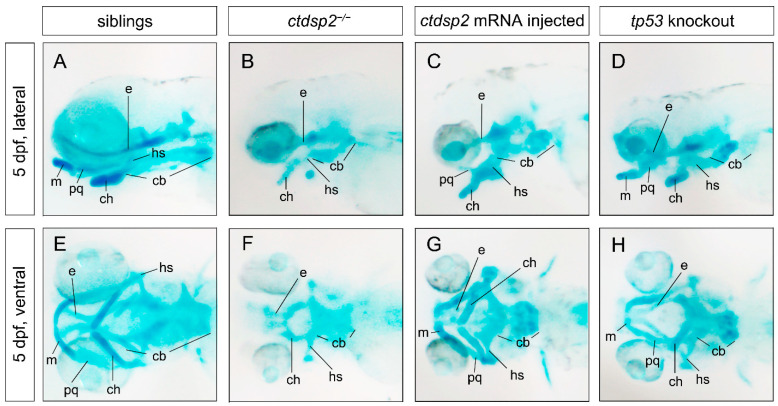

Staining results of pharyngeal arch cartilages using Alcian blue in various groups: (A,E) Wildtype embryos, (B,F) ctdsp2^−/− embryos, (C,G) ctdsp2^−/− embryos injected with ctdsp2 mRNA, and (D,H) tp53-knockout ctdsp2^−/− embryos. Abbreviations: m, Meckel’s cartilage; pq, palatoquadrate cartilage; ch, ceratohyal cartilage; cb, ceratobranchial cartilage; hs, hyosymplectic cartilage; e, ethmoid plate cartilage.
