Figure 2

ID: ZDB-IMAGE-250113-13
Publication: Licitra et al., 2025 - Trehalose Ameliorates Zebrafish Emotional and Social Deficits Caused by CLN8 Dysfunction
All Figures: Figures for Licitra et al., 2025


Figure Caption

Figure 2

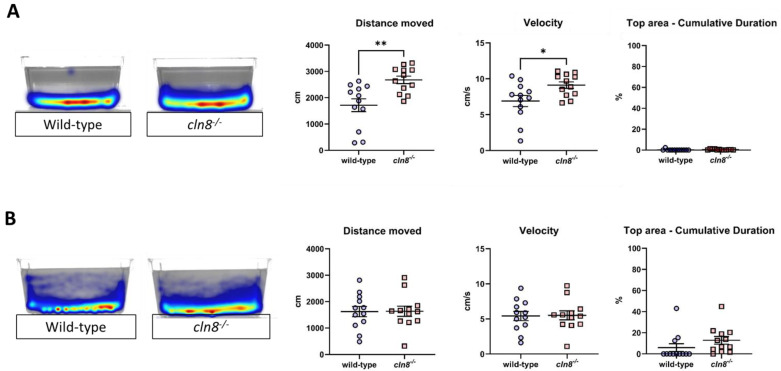

Novel tank test behavioral results before (A) and after (B) the trehalose treatment on cln8^−/− and WT fish (n = 12). Data are represented as individual values (lines indicate means ± SEM). Statistical analyses showed increasing anxiety in cln8^−/− compared to WT before the trehalose feed supplementation (* p ≤ 0.05; ** p ≤ 0.01). The images on the left are representative of the heatmap locomotor activity during the test, the range of color is from dark blue (low activity) to red (high activity).

Figure Data

Phenotype details
