ZFIN Image: Liu et al., 2025, Figure 8


Figure Caption

Figure 8

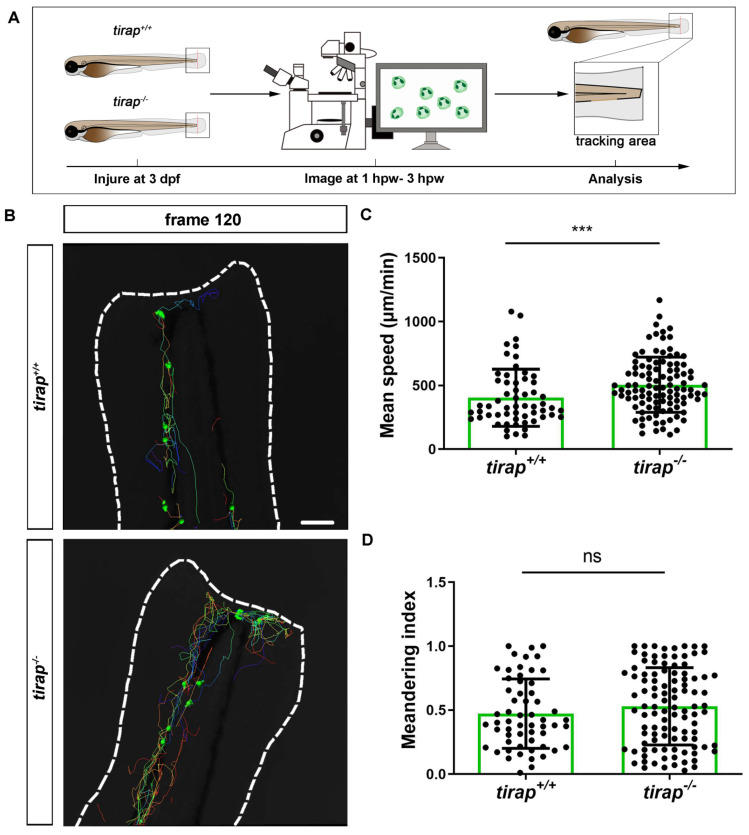

Quantification of neutrophil behaviour upon tail wounding in zebrafish larvae. (A) Schematic representation of experiment. (B) Representative image of neutrophil migration at frame 120 (3 hpw) (C-D) Quantification of neutrophil migratory capability of 3 dpf tirap larvae upon tail wounding. Mean speed (C) and meandering index (D) were quantified using IMARIS Software. The mean speed of neutrophils is measured as total displacement of neutrophils divided by the number of frames. Data consists of 3 tirap^+/+ and 3 tirap^-/- larvae. Statistically significant difference was determined by unpaired t test with Welch's correction, ns, non-significant; ***, P < 0.001.
