Figure 1

ID

ZDB-IMAGE-241219-98

Antibodies

Ab1-gnas

Publication

Abbas et al., 2024 - gnas Knockdown Induces Obesity and AHO Features in Early Zebrafish Larvae

All Figures

Figures for Abbas et al., 2024


Figure Caption

Figure 1

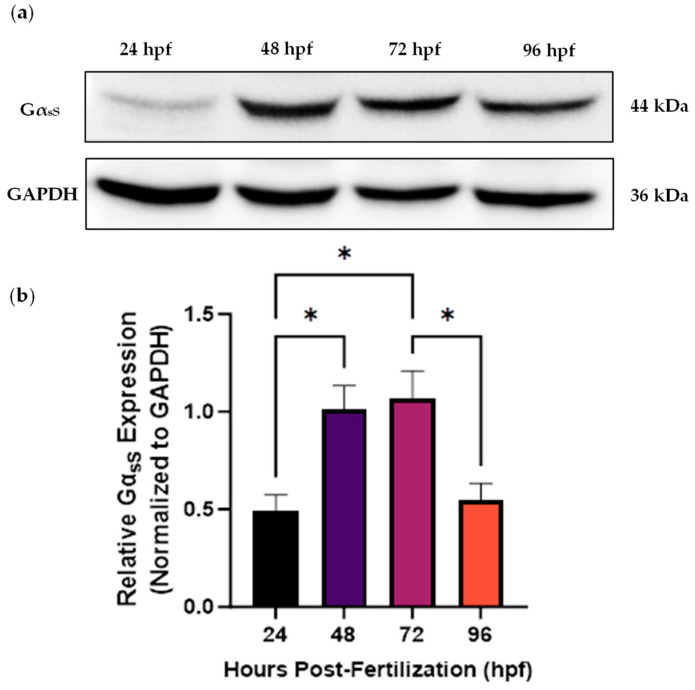

Western blot analysis of the temporal expression pattern of the short Gα_s isoform (Gα_sS) in whole wild-type zebrafish from 24 to 96 h post-fertilization (hpf). (a) Representative blot of the Gα_sS expression level using GAPDH as a loading control. Whole zebrafish tissue lysates were used to extract total protein (~40 µg loaded per well). (b) The band intensities were quantified using ImageJ software, followed by normalization of the Gα_sS band intensity to that of GAPDH, yielding the relative Gα_sS expression level in arbitrary units. One-way ANOVA followed by Tukey’s multiple comparisons test were performed (* p < 0.05). Each bar represents the mean ± SEM (n = 3).

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
