Figure 3—figure supplement 3—source data 1.

ID: ZDB-IMAGE-241218-40
Publication: Sun et al., 2024 - Ciliary length regulation by intraflagellar transport in zebrafish
All Figures: Figures for Sun et al., 2024


Figure Caption

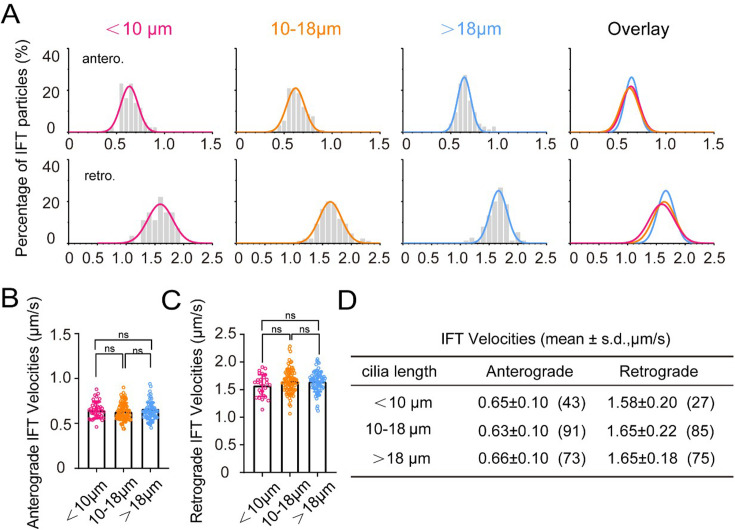

Figure 3—figure supplement 3—source data 1. IFT velocity in cilia of different lengths within crista.

(A) Histograms displaying the velocity of anterograde and retrograde IFT in crista cilia of different lengths as indicated. (B and C) Dot graphs showing the velocity of anterograde and retrograde IFT in crista cilia of different lengths. Statistical significance is based on one-way ANOVA, Bonferroni’s multiple comparisons test. n.s., not significant, p＞0.05. (D) Summary of the anterograde and retrograde velocities in crista cilia of different lengths. Numbers of IFT particles are shown in the brackets. n=46 crista cilia from 14 4dpf larvae. ＜10 μm, n=12; 10–18 μm, n=22, ＞18 μm, n=12.
