Figure 1.

ID

ZDB-IMAGE-241218-35

Genes

mRuby

Antibodies

Publication

Sun et al., 2024 - Ciliary length regulation by intraflagellar transport in zebrafish

All Figures

Figures for Sun et al., 2024


Figure Caption

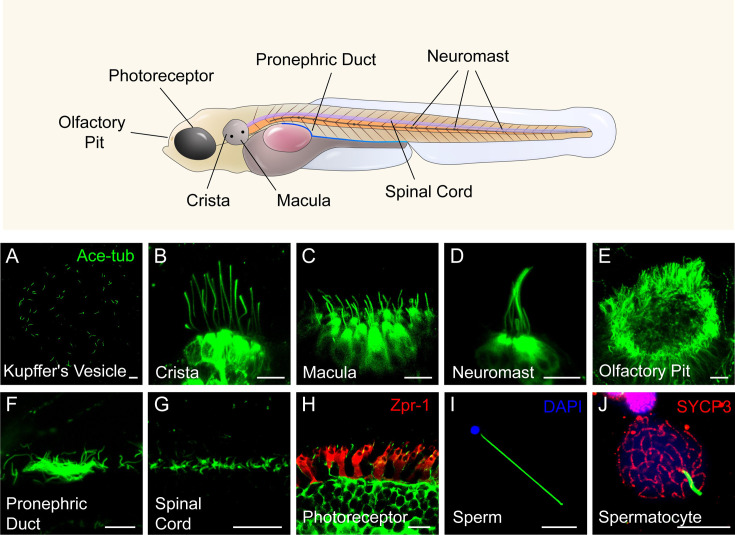

Figure 1. Diverse type of cilia are present in zebrafish.

(A) Cilia in kupffer’s vesicle (KV) of a 10-somite stage zebrafish larvae. (B–H) Confocal images showing cilia in different type of cells at 4 dpf as indicated. The position of these cells were indicated in the top diagram. (I–J) Confocal images showing cilia in the sperm (flagellum) or spermatocyte of adult zebrafish. All the cilia were visualized with anti-acetyleated tubulin. The photoreceptor double cones were stained with zpr-1 antibody in panel H, and nuclei were stained with DAPI in panel I. Immunostaining with anti-SYCP3 labelled the synaptonemal complexes of primary spermatocytes in panel J. Scale bar = 10 μm.

Figure Data

Expression / Labeling details
