ZFIN Image: Kim et al., 2025, Figure 7


Figure Caption

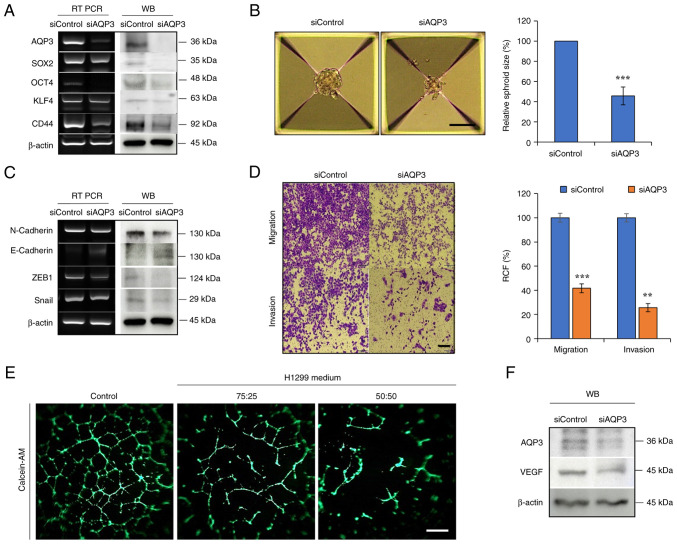

Figure 7

Regulation of stemness, EMT and angiogenesis by downregulating AQP3. (A) Expression of AQP3 and cancer stem cell markers in AQP3-knockdown H1299 cells. (B) Sphere-forming ability in AQP3-knockdown H1299 cells. Scale bar, 100 μm. (C) Expression of AQP3 and EMT markers in AQP3-knockdown H1299 cells. (D) Migratory and invasive ability of AQP3-knockdown H1299 cells. Scale bar, 200 μm. (E) Angiogenesis activity suppressed by conditioned medium (fresh EBM media/H1299 cultured media with siAQP3 ratios (75:25, 50:50). (F) VEGF expression. ^**P<0.01, ^***P<0.001. EMT, epithelial-mesenchymal transition; AQP, aquaporin; RT, reverse transcription; WB, western blotting; si, small interfering; OCT, octamer binding transcription factor; KLF, Kruppel-like factor; VEGF, vascular endothelial growth factor; RCF, relative colony forming; ZEB, Zinc-finger E-box-binding homeobox.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Oncol.
