ZFIN Image: Kim et al., 2025, Figure 3


Figure Caption

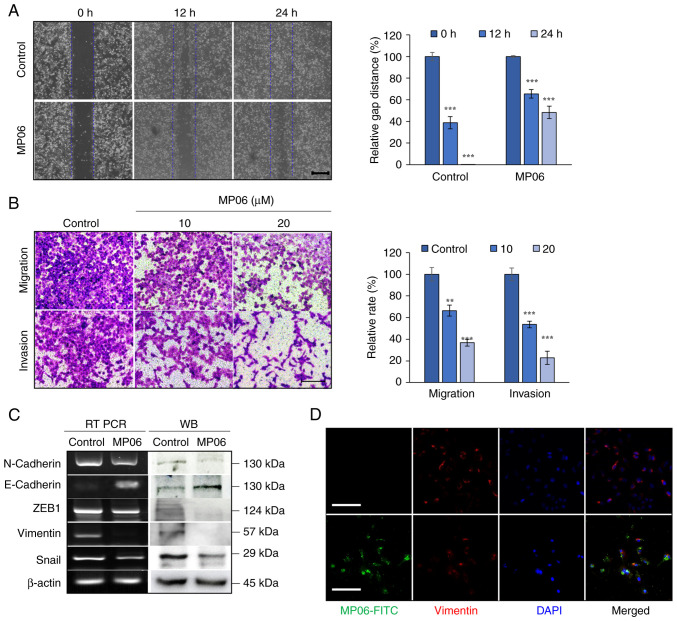

Figure 3

Regulation of EMT and migratory and invasive activity of MP06 in H1299 cells. (A) Wound healing in H1299 cells treated with MP06. (B) Migration and invasion abilities of H1299 cells following treatment with MP06. Scale bar, 500 μm. (C) Cellular levels of EMT markers in H1299 cells treated with MP06. (D) Expression of vimentin and FITC-MP06 through immunofluorescence staining. Scale bar, 100 μm. ^**P<0.01, ^***P<0.001 vs. control. EMT, Epithelial-mesenchymal transition; MP06, marine-derived peptide 06; RT PCR, reverse transcription-PCR; WB, western blotting; ZEB, Zinc-finger E-box-binding homeobox.
