ZFIN Image: Zang et al., 2024, Figure 4


Figure Caption

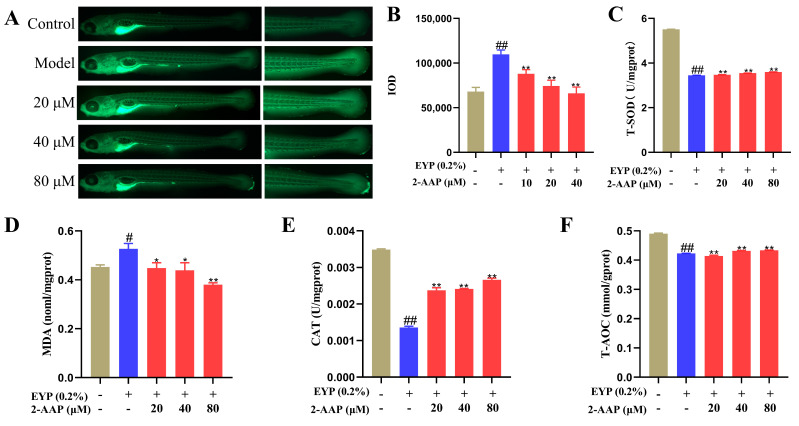

Figure 4

2-AAP improves oxidative stress. (A) Phenotypic diagram of reduced ROS fluorescence intensity caused by 2-AAP. The whole fish was shown on the left, and the enlarged fish tails were shown on the right. (B) IOD values of ROS accumulated in the tail, n = 16. Effects of 2-AAP treatment on T-SOD (C), MDA (D), CAT (E), and T-AOC (F) levels. In the column chart, brown represents the blank group, blue represents the model group, and red represents the administration group. Compared with the control group, # p < 0.05, ## p < 0.01. Compared with the model group, * p < 0.05, ** p < 0.01.
