ZFIN Image: Schmitner et al., 2024, Fig. 4


Figure Caption

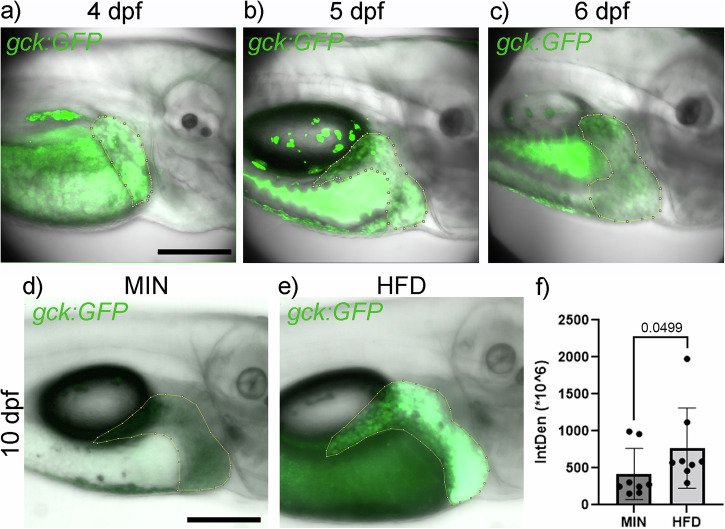

Fig. 4 Gck:GFP recapitulates gck expression and nutrient responses in the liver.

Transgenic gck:GFP expression in the liver (yellow outline) at 4 dpf (a), 5 dpf (b) and unfed 6 dpf larvae (c). gck:GFP expression in the liver is nutrient dependent after depletion of the yolk, showing low expression upon fasting or minimal diet from 6 to 10 dpf (d) and significantly elevated expression upon feeding a high fat diet (HFD) from 6 to 10 dpf (e). Scale bar: 200 µm. f Quantification of GFP signal in the liver of MIN and HFD fed larvae (N = 8). Dot and bar plot showing mean with SD. Statistical significance assessed by Mann–Whitney-test.
