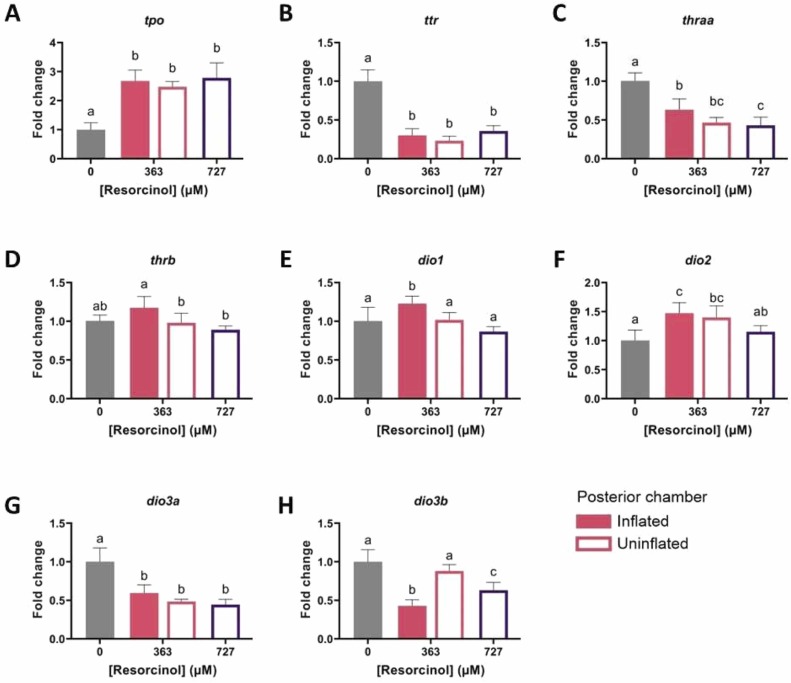

Fig. 4 Effect of resorcinol exposure on gene transcription of key genes of the thyroid hormone system. Relative gene transcript levels (relative to the control (0 µM)) of tpo (A), ttr (B), thraa (C), thrb (D), dio1 (E), dio2 (F), dio3a (G) and dio3b (H) following resorcinol exposure at 120 hpf. Significant differences are indicated with different letters. Inflation status of the posterior chamber of the swim bladder is indicated by either a filled bar (inflated) or an unfilled bar (uninflated). Five replicate samples where used per condition and each sample consisted of ten eleutheroembryos.
