ZFIN Image: Fernezelian et al., 2024, Fig. 8


Figure Caption

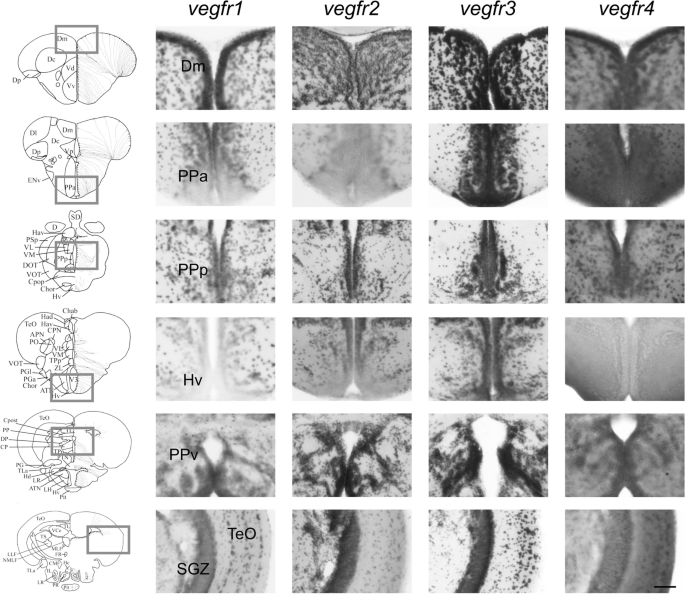

Fig. 8 vegfr1, vegfr2, vegfr3, and vegfr4 expression in the adult zebrafish brain. In situ hybridization for vegfr1, vegfr2, vegfr3, and vegfr4 performed on transverse sections through the dorsomedian telencephalon (Dm), the anterior (PPa) and posterior part (PPp) of the preoptic area, the anterior hypothalamus (Hv), the periventricular pretectal nucleus (PP) and the optic tectum (TeO), with a focus on the subgranular grey zone (SGZ). Expression of vegfr genes is detected widely throughout the brain, in both the parenchyma and along the periventricular/ventricular layers which are associated with neurogenic regions. The expression is relatively ubiquitous. Bars: 100 ?m
