Figure Caption

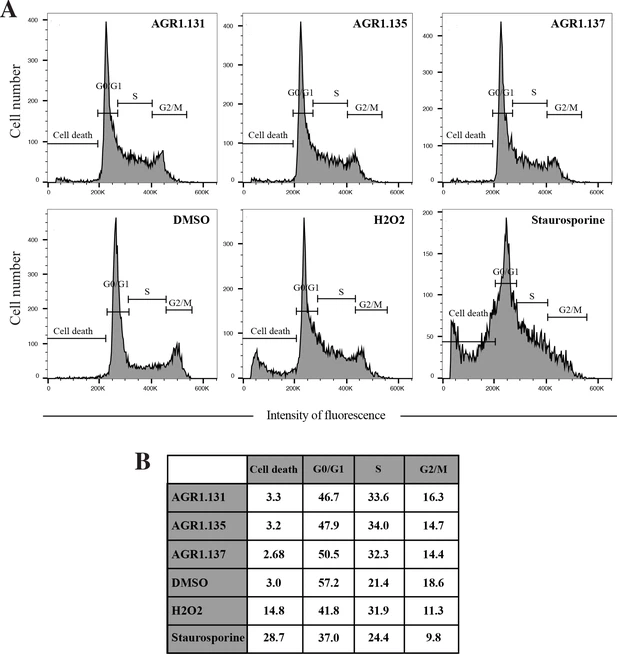

Fig. 1 - supplement 2 Effect of small compounds on Jurkat cell cycle. (A) Cell cycle analysis using propidium iodide incorporation and flow cytometry of Jurkat cells treated with AGR1.131, AGR1.135 and AGR1.137 (2 hours, 37ºC) or with DMSO (vehicle), H2O2 (10%) and staurosporine (10 mM) as controls. The percentage of cells in each cycle stage is shown. (B) Summary of the percentage of treated cells in each cell cycle phase.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Elife
