FIGURE 1

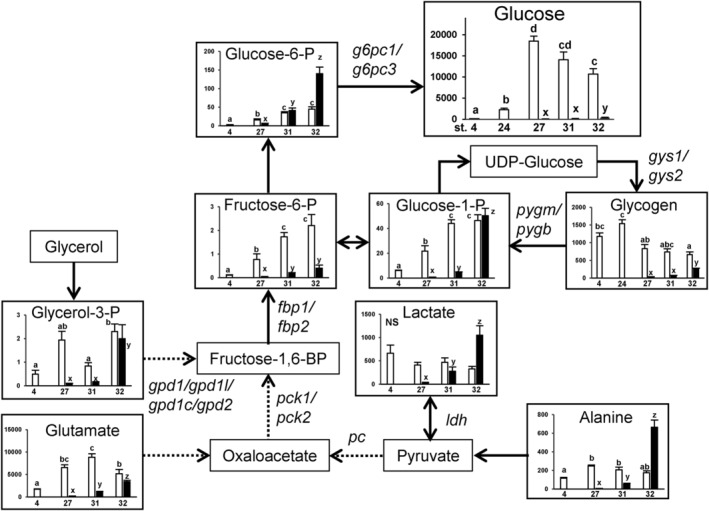

The metabolic pathway map showing changes in each metabolite levels per individual yolk sac (open column) or embryo (filled column) during development. The horizontal axes represent developmental stages {stages 4, 24 (glucose and glycogen only), 27, 31, 32} and the vertical axes represent nmol/sample. Data are presented as mean ± standard error (N = 6). Different letters indicate significant differences (p < 0.05) between groups. Tests for significant differences were performed by one‐way ANOVA and Tukey's post‐hoc test separately for yolk sac or embryo samples after log transformation. Fructose‐1,6BP, fructose 1,6‐bisphosphate; ‐P, ‐phosphate. Genes responsible for respective pathways were shown beside the arrows. For the complete map with all metabolites measured in this study, please refer to Figure S2.
