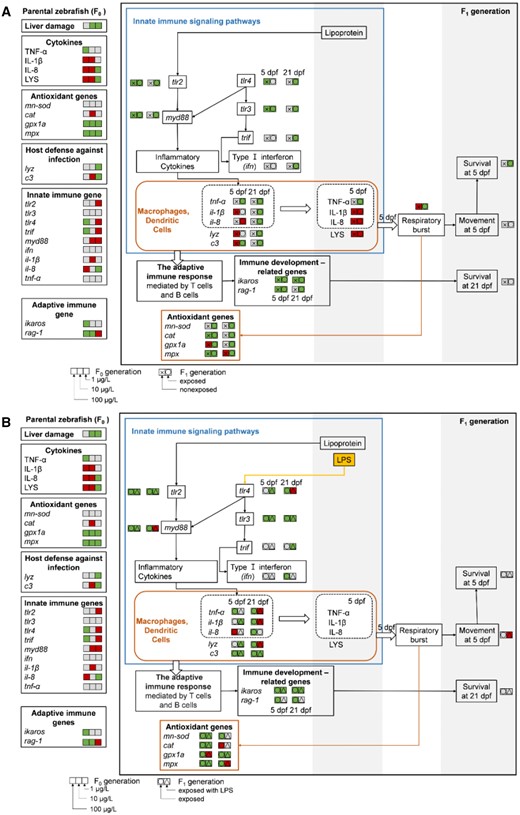

Fig. 3 Effects and proposed toxicity pathway on the innate immune and adaptive immune system in F1 generation at 5 and 21 dpf. It showed the effects in different biological levels in adult zebrafish (F0) exposed to 3 CBZ treatments and the transcription level of genes in F1 which exposed or nonexposed to CBZ (A), and the effects in F1 exposed to CBZ added LPS or not added LPS (B). The color key (red, green, gray) indicates significant upregulation, downregulation, and no significant difference compared with the control group
