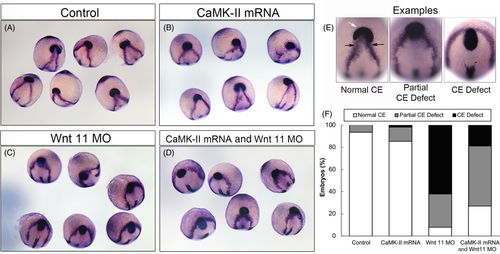

Fig. 8 Overexpression of CaMKII partially rescues the convergent extension (CE) defect of Wnt11 morphants. (A–D) Morphant embryos injected with 3 ng wnt11 morpholino oligonucleotide with or without CaMKII mRNA are shown at the 1–3 somite stage after in situ hybridization with a combination of the ctslb, dlx3, and tbxta probes as in Figure 3. (E) Individual examples of normal, partial, and defective CE with ctslb denoted by a white arrow and dlx3 by black arrows. (F) The percentage of embryos for each condition were scored for normal CE, partial CE defect or CE defect. Three separate experiments yielded 55–107 embryos for each condition.
