Figure 1

ID: ZDB-IMAGE-240513-138
Publication: Du et al., 2024 - Vitamin D3 Regulates Energy Homeostasis under Short-Term Fasting Condition in Zebrafish (Danio Rerio)
All Figures: Figures for Du et al., 2024


Figure Caption

Figure 1

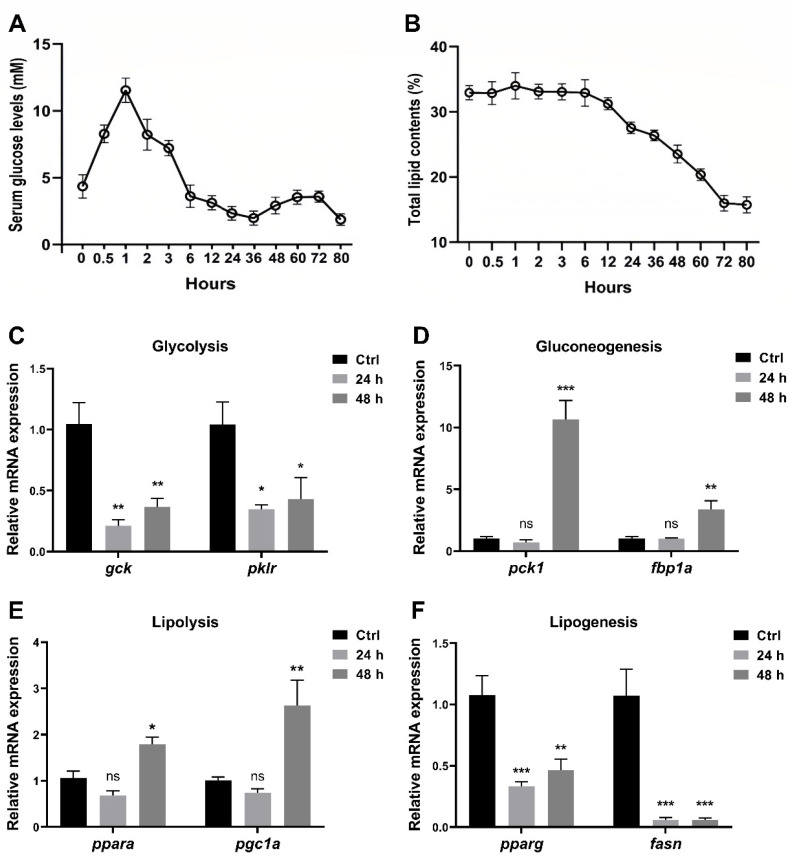

Short-term fasting influences glucose and lipid metabolism in zebrafish. WT zebrafish at 3 mpf were fasted for 0 h to 80 h after the last feeding. (A,B) The serum glucose levels (A) and total lipid contents in the whole fish (B) were evaluated (n = 3 replicates, 3 fish/replicate). (C–F) Relative expression levels of glycolysis-related genes (gck and pklr) (C), gluconeogenesis-related genes (pck1 and fbp1a) (D), lipolysis-related genes (ppara and pgc1a) (E), and lipogenesis-related genes (pparg and fasn) (F) in the liver were determined (n ≥ 4/group). * p < 0.05, ** p < 0.01, *** p < 0.001, ns: no statistical significance.
