Figure Caption

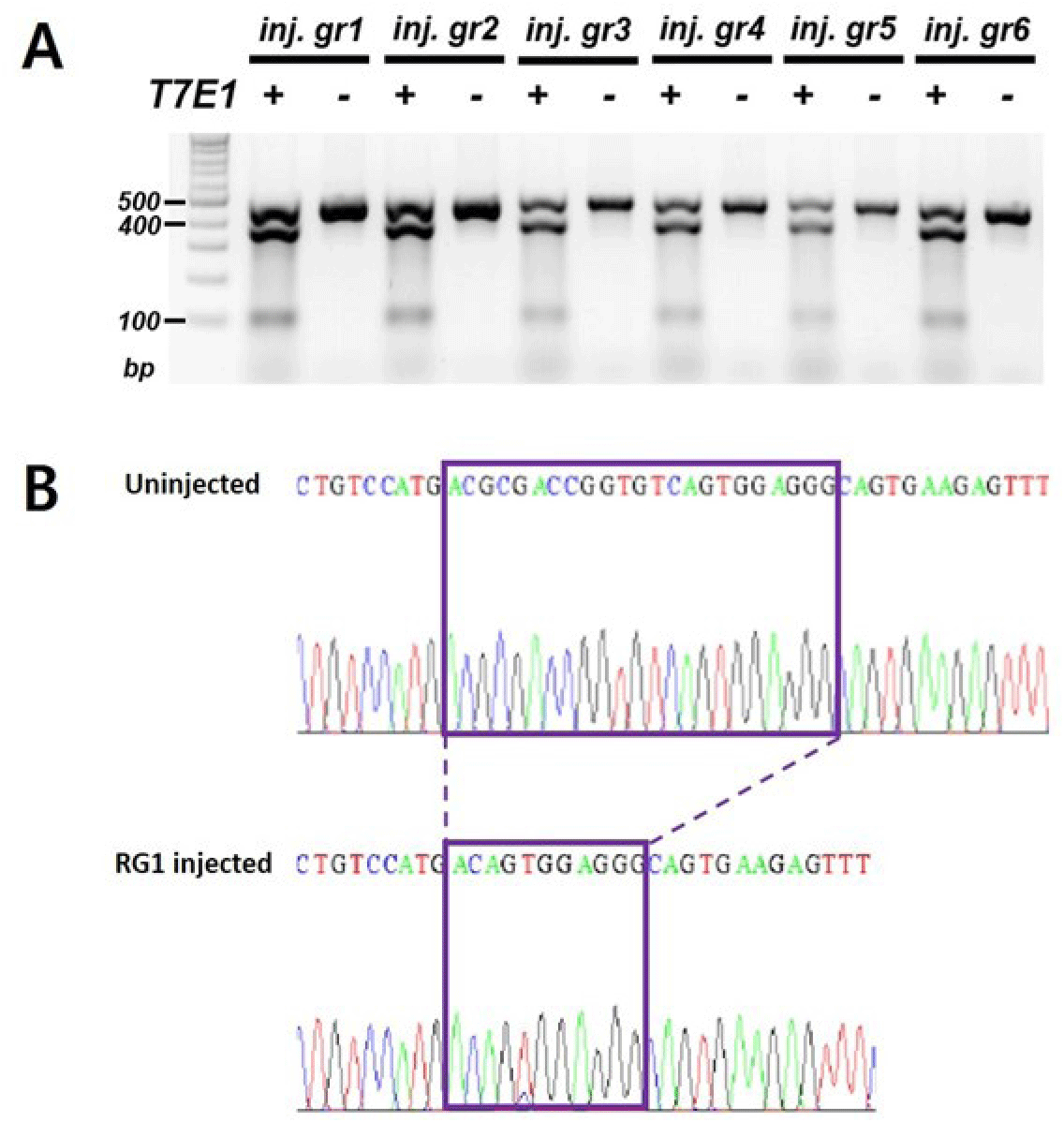

Fig. 3 Test of activity for ints14 RGEN in zebrafish. (A) To identify the efficiency of the sgRNA, we co-injected ints14 sgRNA (RG1) and Cas9 protein. Co-injected embryos showed that the sgRNA efficiently generated mismatched DNA when the T7 endonuclease I (T7E1) assay was performed. (B) The TA-cloning and sequencing results demonstrate that a deletion of approximately 12 bp can be achieved via the RGEN system.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Dev Reprod
