Figure 3

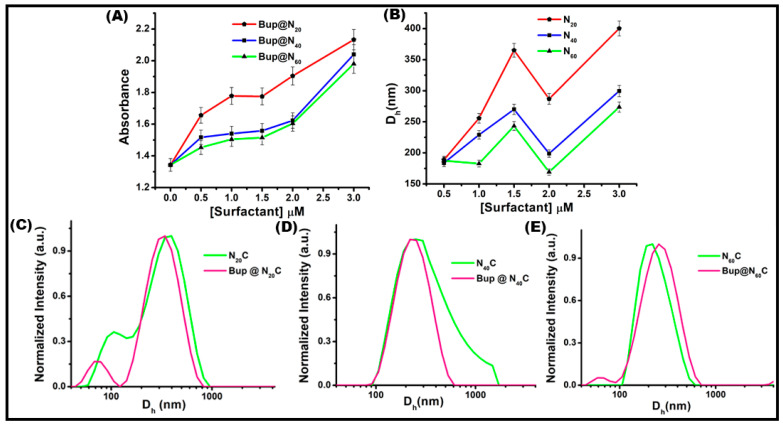

Optimization of the surfactant concentration using Bup as an external probe in Span 20, 40, and 60 vesicles. Effect of surfactant concentration on absorbance. (A) Scatter plot representation of OD at 251 nm of Bup@N₂₀, Bup@N₄₀, and Bup@N₆₀. (B) Representation of colloid particle size distribution in the scatter plot of varying surfactant concentration of N₂₀, N₄₀, and N₆₀. Spectral representation of the hydrodynamic diameter of (C) N₂₀C and Bup@N₂₀C, (D) N₄₀C and Bup@N₄₀C, and (E) N₆₀C and Bup@N₆₀C.
