Figure Caption

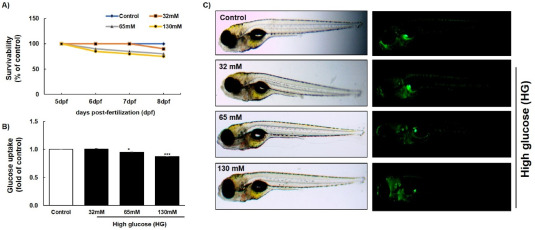

Fig. 2 Effect of HG on toxicity and glucose uptake of zebrafish larvae. A) survivability in different concentrations of glucose solution for 72 h; B) level of glucose uptake; C) fluorescence imaging of glucose uptake (2.0X). Zebrafish larvae were exposed to d-glucose solution (32, 65, and 130 mM) from 5 dpf to 8 dpf to induce IR to create a T2DM model. Data are presented as mean ± SE (n = 8) and analyzed by one-way analysis of variance followed by Dunnett test. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. control. Abbreviations: HG; high glucose, T2DM; type 2 diabetes mellitus.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ J Tradit Complement Med
