ZFIN Image: Feng et al., 2024, Figure 7


Figure Caption

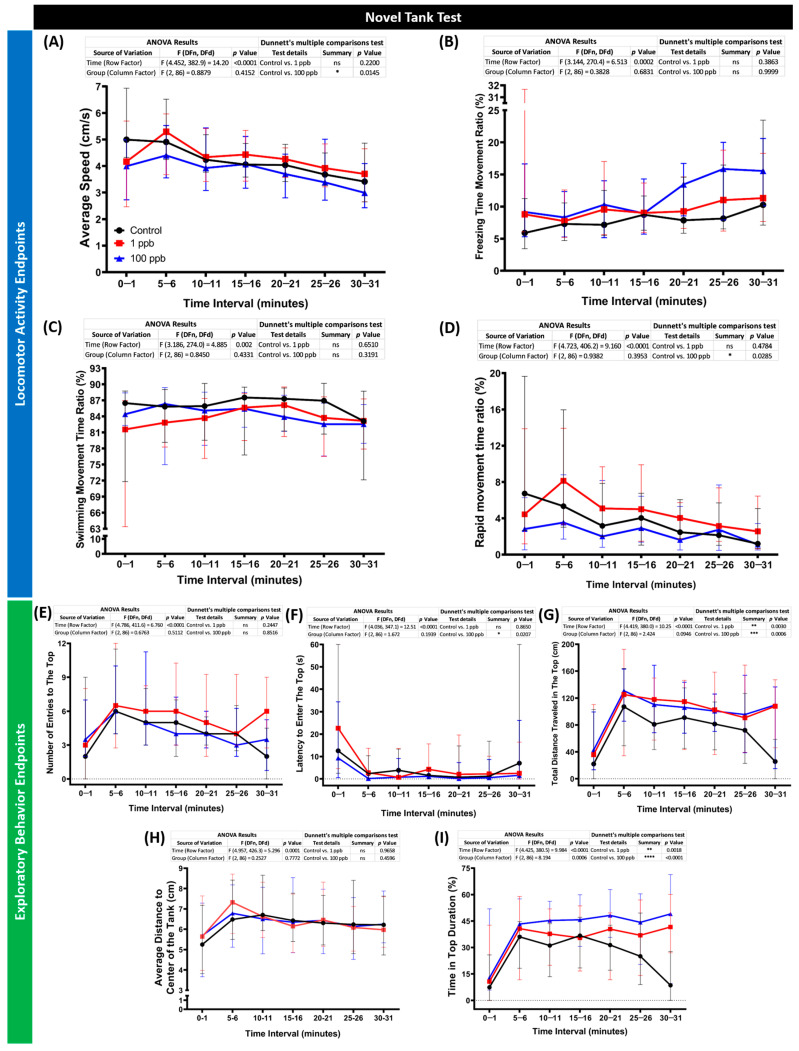

Figure 7

(A) Average speed, (B) freezing time movement ratio, (C) swimming movement time ratio, (D) rapid movement time ratio, (E) number of entries to the top, (F) latency to enter the top, (G) total distance traveled in the top, (H) average distance to center of the tank, and (I) time in top duration behavior endpoints of zebrafish after being exposed to tacrolimus at two different concentrations; 1 ppb (red) and 100 ppb (blue) compared to control (black). The data are expressed as the median with an interquartile range. The statistical analyses were conducted by two-way ANOVA with Geisser–Greenhouse correction. To observe the main column (tacrolimus) effect, Dunnett’s multiple comparison test was carried out. The statistical comparisons were performed between the control and each treated group (n control = 29, n tacrolimus = 30; * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biology (Basel)
