Figure 7

ID
ZDB-IMAGE-240202-24
Publication
Štefl et al., 2024 - Caveolae disassemble upon membrane lesioning and foster cell survival
All Figures
Figures for Štefl et al., 2024
Figure Caption

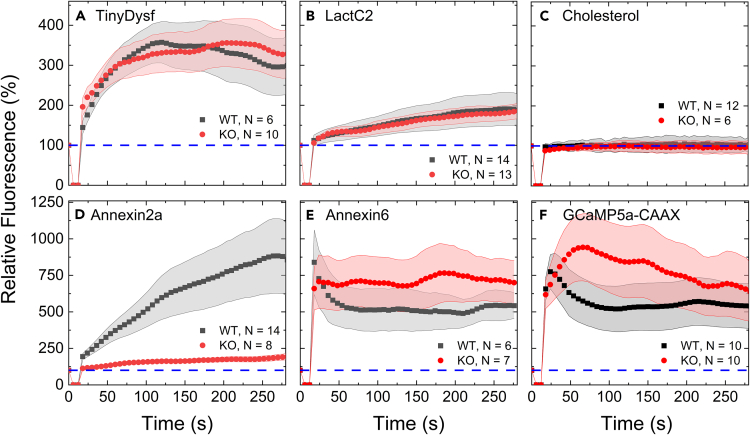

Figure 7

Δcavin1a mutants have slightly abnormal lesion patches but appear functional

Temporal development of the relative emission intensities of different proteins at the lesion site in the wild-type (black) and cavin1a knockout (red) strains, normalized to the fluorescence measured at the sarcolemma at the site right before wounding.

(A) TinyDysf-Clover.

(B) LactC2-EGFP. (C) BODIPY-Cholesterol.

(D) Annexin2a-mOrange.

(E) Annexin6-mOrange.

(F) GCaMP5a-CAAX. Symbols show averages over multiple cells (cell numbers, N, are given in each panel); shaded regions indicate standard deviations. Fluorescence signals were set to 100% at t = 0 (before damage).
