ZFIN Image: Tazin et al., 2023, Figure 3


Figure Caption

Figure 3

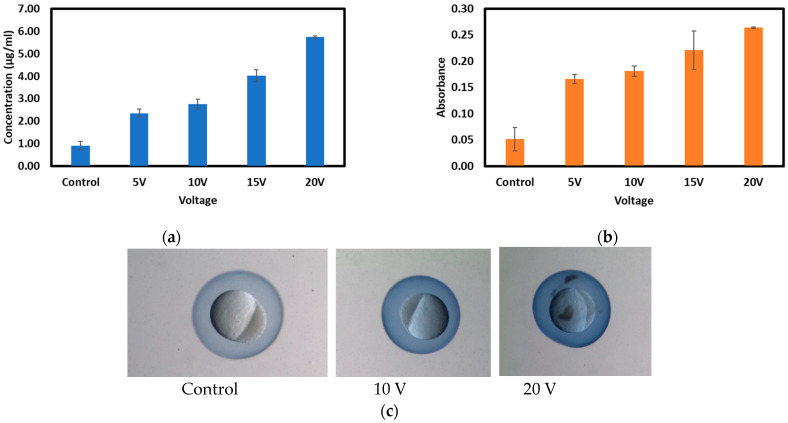

(a) Trypan blue concentration (µg/mL) inside the chorion for application of voltages from (5–20 V) determined from the calibration curve. (b) Calculated absorbance of Trypan blue inside the chorion of embryos after application of voltages from (5–20 V) determined from the RGB values of the images. (c) The concentration of Trypan blue inside the chorion for various conditions: Left—control embryos with no voltage application only exposed to Trypan blue dye. Middle—embryos were exposed to Trypan blue and 10 V pulses. Right—embryos exposed to Trypan blue and 20 V pulses.
