Figure 3

ID: ZDB-IMAGE-240129-184
Publication: Sun et al., 2024 - amer1 Regulates Zebrafish Craniofacial Development by Interacting with the Wnt/β-Catenin Pathway
All Figures: Figures for Sun et al., 2024


Figure Caption

Figure 3

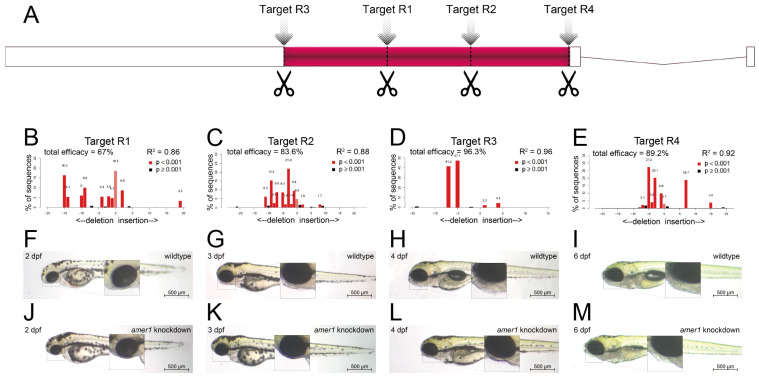

Knockdown of amer1 and phenotypic changes. (A) Schematic diagram showing the four amer1 gRNA targets of the CRISPR/Cas9 knockdown system. (B–E) PCR analysis, showing representative amer1 knockdown efficiencies of the four gRNA targets. (F-M) Brightfield images of embryos of (F–I) wildtype and (J–M) amer1 knockdown zebrafish at (F,J) 2, (G,K) 3, (H,L) 4, and (I,M) 6 dpf, showing malformed mandibles in the amer1 knockdown embryos.
