Fig. 8

ID: ZDB-IMAGE-240124-54
Source: Figures for Jing et al., 2024


Figure Caption

Fig. 8

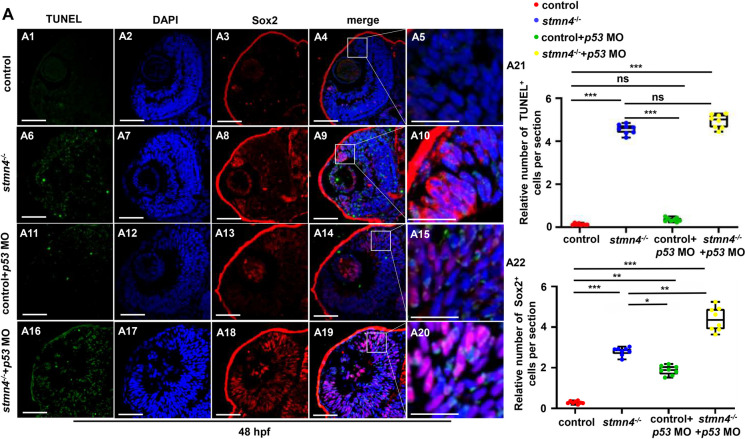

Stmn4 deficiency induced apoptosis of RPCs independent on P53. (A) TUNEL and Sox2 staining in WT (A1 − A5), in stmn4^−/− (A6 − A10), in WT embryos injected with p53 MO (A11 − A15), and in stmn4-/- injected with p53 MO (A16 − A20) and the calculation data (A21 − A22). Scale bar, 50 μm (A1 − A4, A6 − A9, A11 − A14, A16 − A19), 25 μm (A5, A10, A15, A20). ***P < 0.001, **P < 0.01, *P < 0.05, ns, not significant
