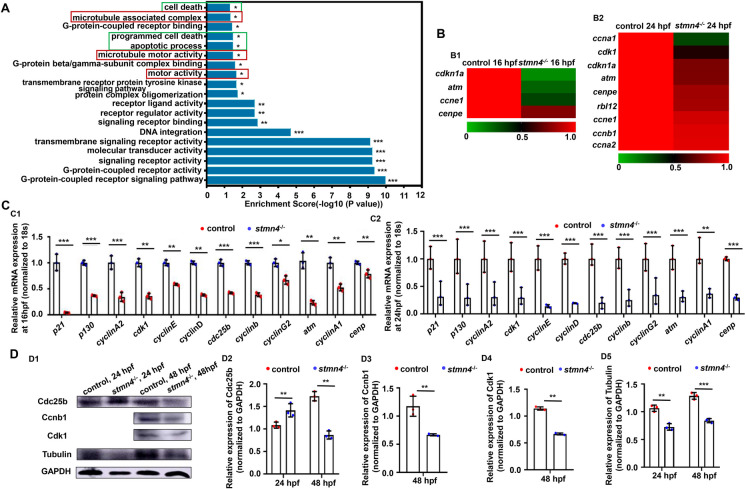

Expression of cell cycle genes in stmn4^−/− mutants. (A) GO pathway of apoptosis and mitosis were enriched for DEGs in stmn4^−/− mutants at 24 hpf. (B) Heatmaps of the down-regulated cell cycle related DEGs (B1, B2). (C) qRT-PCR assays for the cell cycle related genes in zebrafish embryo at 16 hpf and 24 hpf (C1, C2). (D) Expression of Cdc25b, Ccnb1, Cdk1, Tubulin in zebrafish embryo at 24 hpf and 48 hpf (D1), and the calculation of the protein levels in each sample (D2 − D5). ***P < 0.001, **P < 0.01, *P < 0.05
