Fig. 9

ID: ZDB-IMAGE-240124-38
Publication: Rodríguez-Ruiz et al., 2023 - ZAKα/P38 kinase signaling pathway regulates hematopoiesis by activating the NLRP1 inflammasome
All Figures: Figures for Rodríguez-Ruiz et al., 2023


Figure Caption

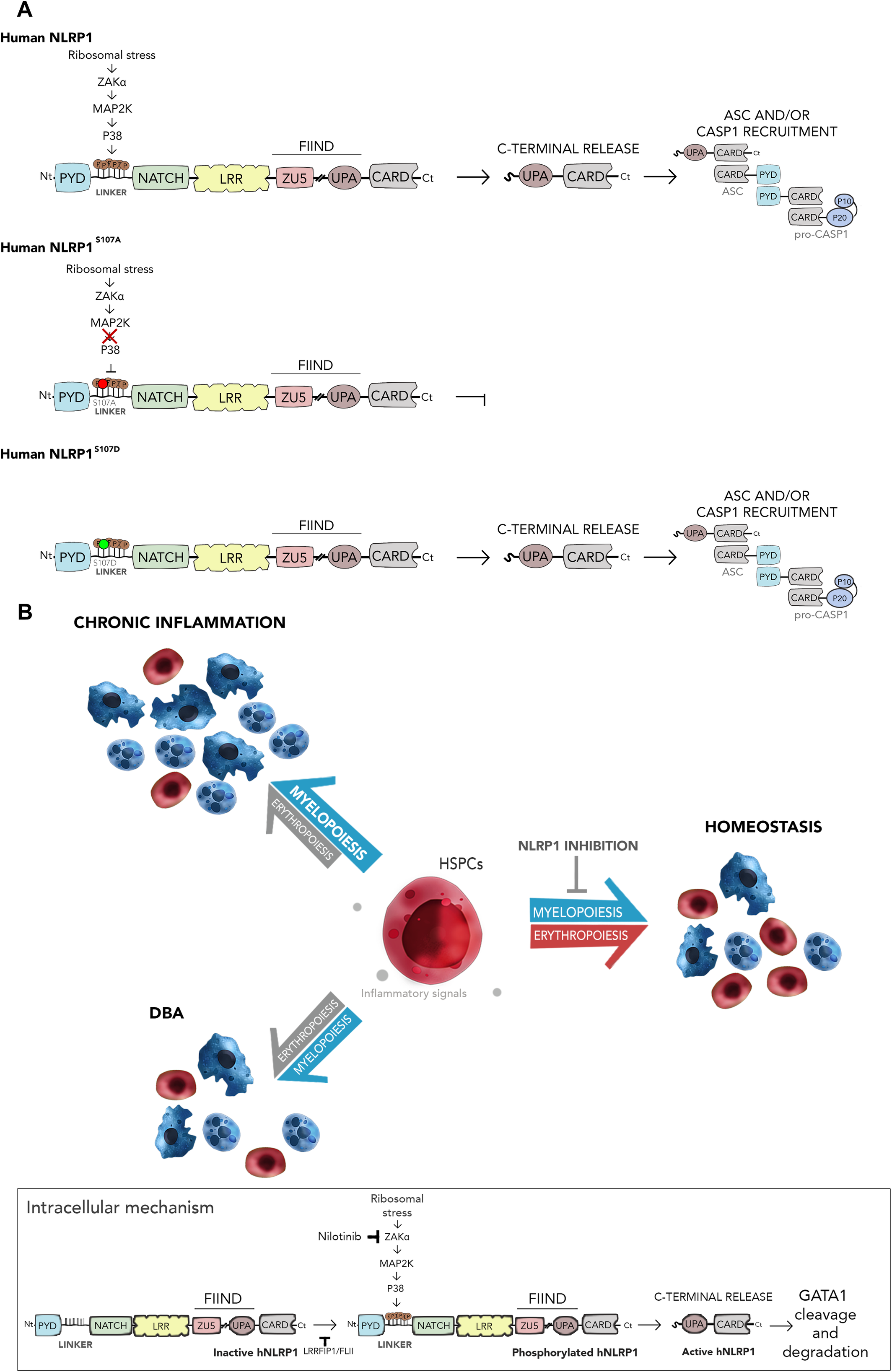

Fig. 9 Activation of NLRP1 by the ZAKα/P38 signaling pathway A Schemes showing the domain organization of human wild type NLRP1 and the S107A and S107D mutants. Phosphorylation of the linker domain by ZAKα (MAP3K)/MAP2K/P38 (MAPK) axis is highlighted. Note that S107A cannot be phosphorylated by P38, while phosphomimetic S107D is constitutively active independently of P38 activation. B The NLRP1 inflammasome critically regulates hematopoiesis following its activation by ZAKα/P38 signaling pathways, which is initiated by ribosomal stress. Inhibition of this pathway with nilotinib rescues erythropoiesis defects in HSPCs from DBA and neutrophilic inflammation patients.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ EMBO Mol. Med.
