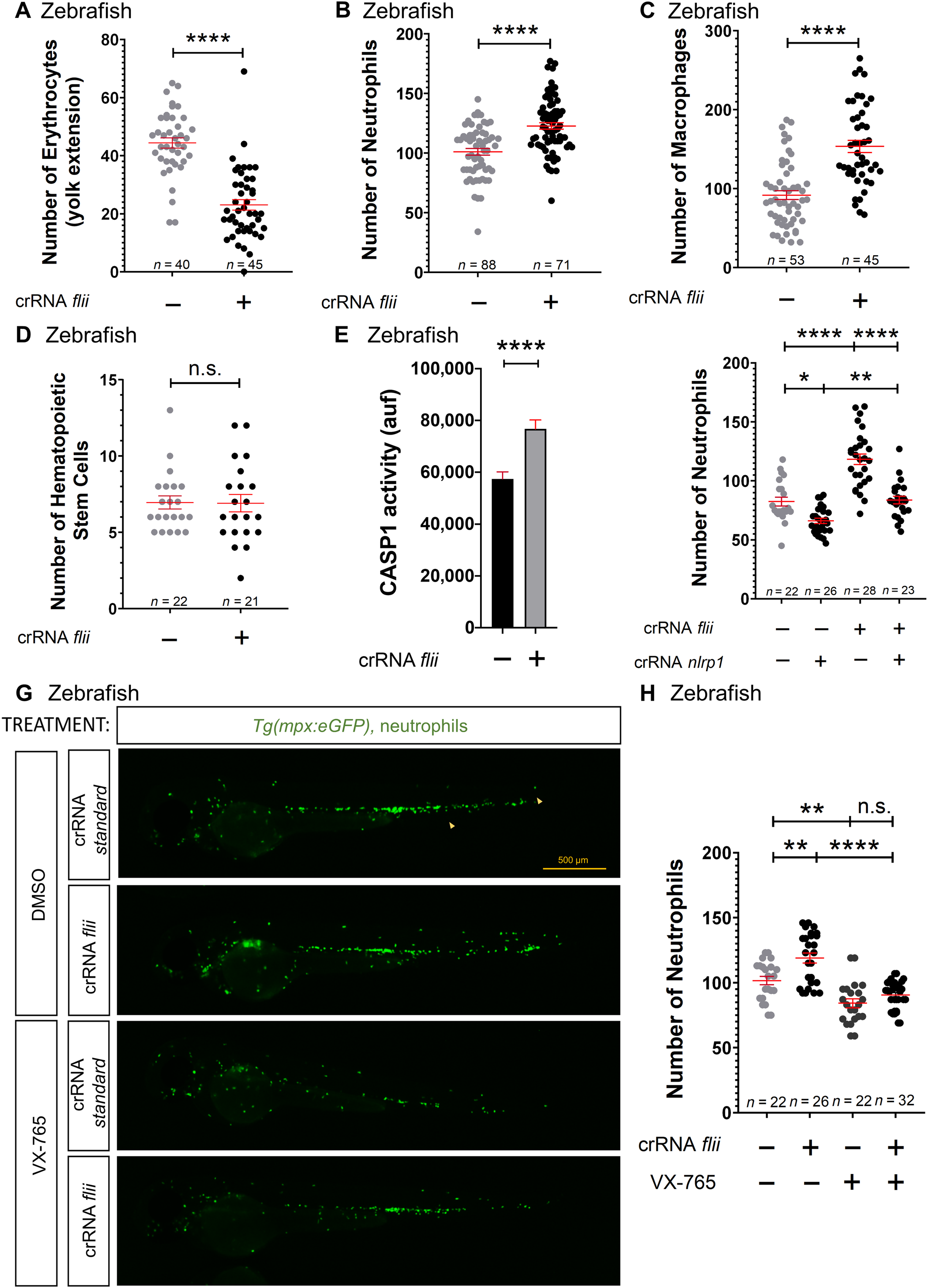

Fig. 5 Flii regulates hematopoiesis through the Nlrp1 inflammasome in zebrafish A–H Number of erythrocytes (A), neutrophils (B, F‐H), macrophages (C), and HSPCs (D), and caspase‐1 activity (E) in nlrp1 crispant larvae of 2 dpf obtained by injecting one‐cell stage embryos with standard, nlrp1 and/or flii crRNAs/Cas9 complexes. (G, H) Larvae were also treated by bath immersion with 100 μM of the caspase‐1 inhibitor VX‐765. Representative images of neutrophils in flii crispant larvae using Tg(mpx:eGFP) reporter line are shown in (G). Each dot represents one individual and the mean ± SEM for each group is also shown. P values were calculated using Student's t‐test. n.s., non‐significant; *P < 0.05; **P < 0.01; ****P < 0.0001.
