Fig. 4

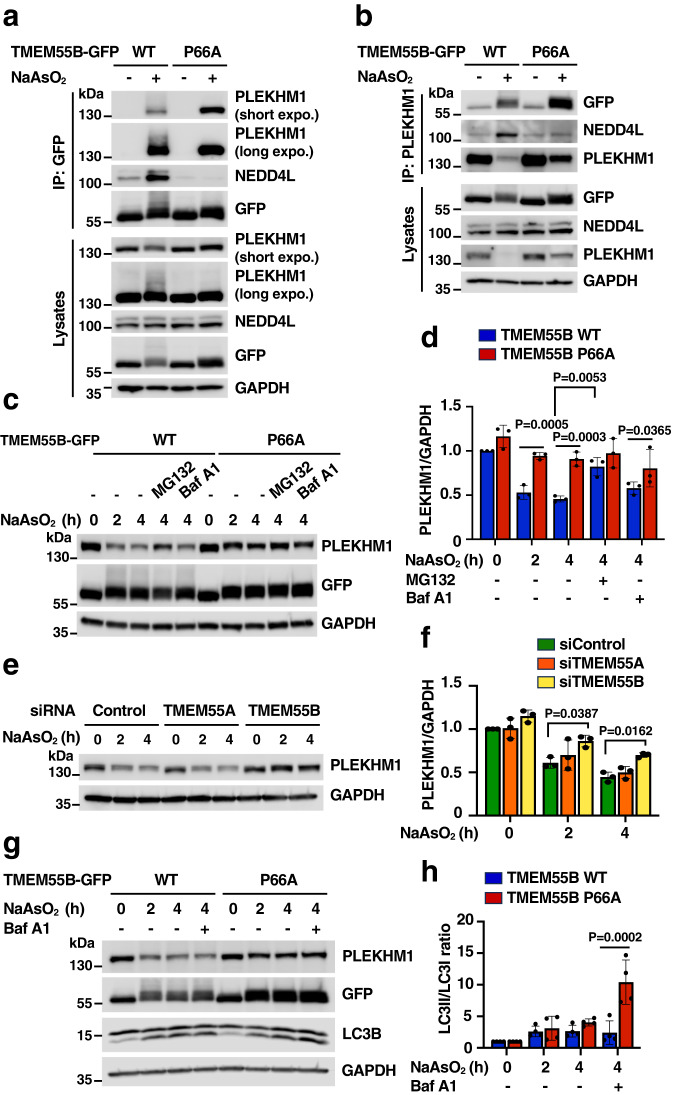

Fig. 4 TMEM55B-mediated PLEKHM1 degradation decreases autophagy flux.

a U2OS cells infected with adenovirus expressing TMEM55B-GFP-WT or P66A were treated with or without NaAsO₂ (300 μM) for 2 h. Cells were lysed and pulled down with GFP beads. The results are representative of four independent experiments. Short expo. (Shorter exposure), long expo. (Longer exposure). b U2OS cells infected with adenovirus expressing TMEM55B-GFP-WT or P66A were treated with or without NaAsO₂ (300 μM) for 2 h. Cells were lysed and immunoprecipitated with anti-PLEKHM1 antibody. The results are representative of three independent experiments. c U2OS cells infected with adenovirus expressing TMEM55B-GFP-WT or P66A were incubated with NaAsO₂ (300 μM) in the presence of MG132 (50 μM) or Bafilomycin A1 (100 nM) for the indicated times. The results are representative of three independent experiments. d Quantification of immunoblots shown in (c). The data represent means ± SEM, n = 3 independent experiments. Statistical significance was determined by using two-way ANOVA with Sidak’s multiple comparisons. e siRNA transfected U2OS cells were treated with NaAsO₂ (300 μM) for indicated times. The results are representative of three independent experiments. f Quantification of immunoblots shown in (e). The data represent means ± SEM, n = 3 independent experiments. Statistical significance was determined by using two-way ANOVA with Sidak’s multiple comparisons. g U2OS cells infected with adenovirus expressing TMEM55B-GFP-WT or P66A were incubated with NaAsO₂ (300 μM) alone or NaAsO₂ (300 μM) plus Bafilomycin A1 (200 nM) for indicated times. The results are representative of four independent experiments. h Quantification of immunoblots shown in (g). The data represent means ± SEM, n = 3 independent experiments. Statistical significance was determined by using two-way ANOVA with Sidak’s multiple comparisons. Source data are provided as a Source Data file.
