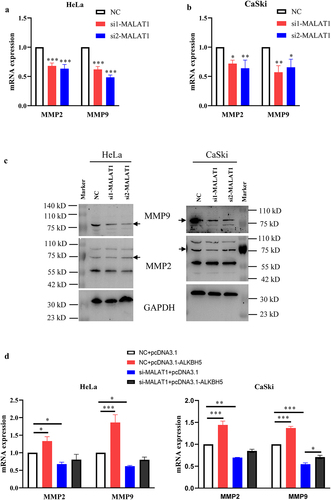

Fig. 6 Effect of the MALAT1-ALKBH5 axis on MMP2 and MMP9 expression. (a and b) HeLa and CaSki cells were, respectively, transfected with NC and two siRNAs against MALAT1 or ALKBH5. The expression levels of MMP2 and MMP9 was determined by RT-qPCR. (c) The cell lysates were subjected to western blot analysis of MMP2 and MMP9 after knockdown of MALAT1 in HeLa and CaSki cells using GAPDH as loading control. (d) Both HeLa and CaSki cells were transfected with NC and siRNAs against MALAT1 with co-transfection of the ALKBH5 expression vector (pcDNA3.1-ALKBH5), with empty vector (pcDNA3.1) serving as the control. Cell RNA was isolated and subsequently reverse transcribed into cDNA, which were subjected to RT-qPCR for determination of MMP2 and MMP9 expression using specific primers. NC, negative control.
Figure Caption
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Cancer Biol. Ther.
