Fig. 3.

ID: ZDB-IMAGE-231212-60
Publication: Karoglu-Eravsar et al., 2023 - Long-term Acetylcholinesterase Depletion Alters the Levels of Key Synaptic Proteins while Maintaining Neuronal Markers in the Aging Zebrafish (Danio rerio) Brain
All Figures: Figures for Karoglu-Eravsar et al., 2023


Figure Caption

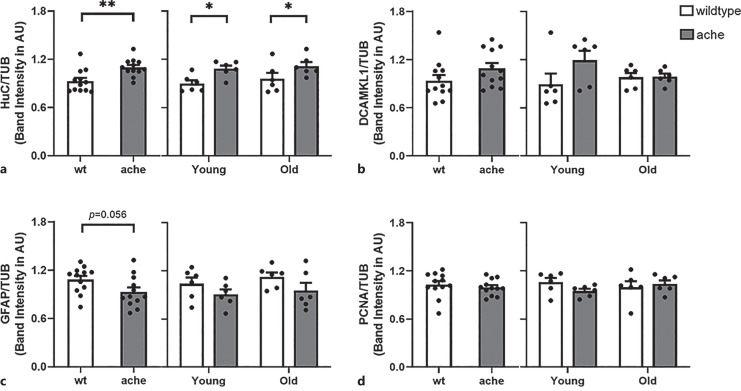

Fig. 3.

Relative levels of neuronal, glial, and proliferation markers between genotype and age groups. a HuC protein expression levels were altered significantly depending on the genotype of the animal with ache mutants having higher levels of HuC at both young and old ages. b No significant changes were observed in the whole brain levels of the post-mitotic neuronal marker DCAMKL1. c Glial marker GFAP showed no significant changes. d Global proliferation marker PCNA was stable among age and genotype groups. The group means + SE are represented. *: p <0.05, **: p <0.01.
