ZFIN Image: Tan et al., 2023, FIGURE 4


Figure Caption

FIGURE 4

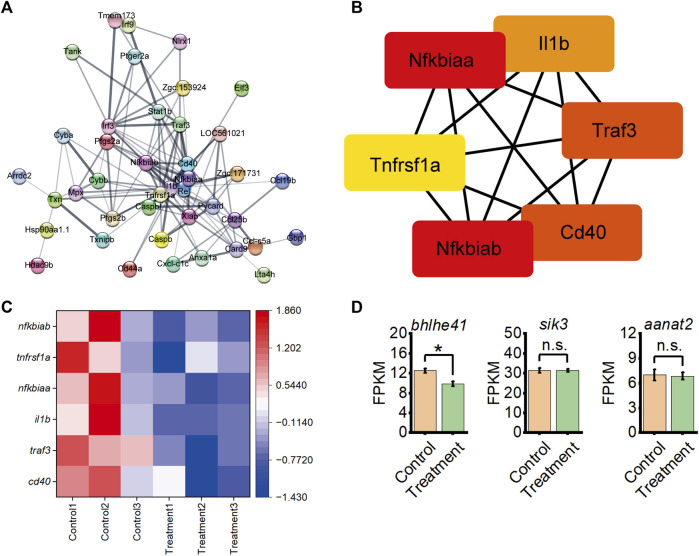

Inflammatory response interacts with the NOD-like receptor signaling pathway from DEG between control and 1.50 g/L Aquilaria sinensis leaf tea treatment groups and expression levels of sleep-related genes. (A) String analysis of DEGs associated with immune response. The thicker the lines between the proteins, the stronger the interaction. (B) Six immune-related genes were identified from String analysis. (C) Heatmap shows the expression of six immune-related genes under sleep disturbance conditions in DEGs. (D) FPKM of sleep-related genes between control and treatment group (one-way ANOVA, Tukey’s post hoc test. Data are shown as mean ± standard deviations. n.s. indicates no significance, * indicates significance at p < 0.05).
