FIGURE 1

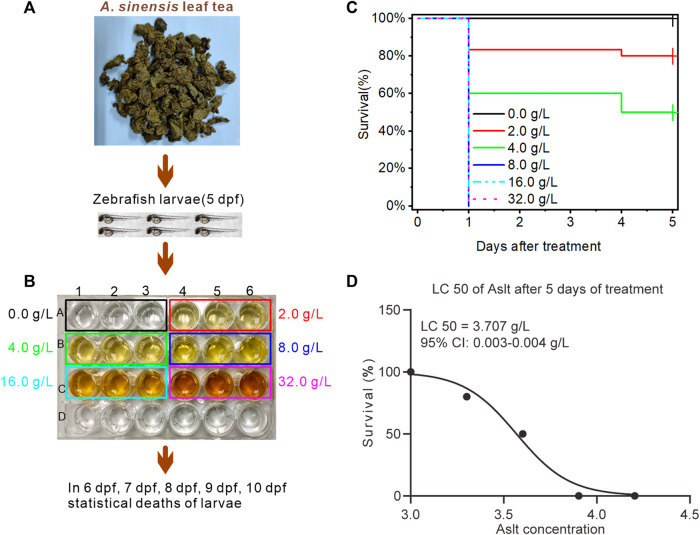

Effect of Aquilaria sinensis (Lour.) Spreng leaf tea extract on zebrafish larvae. (A) Treatment of zebrafish larvae at 5 dpf with A. sinensis leaf tea extract. (B) Zebrafish larvae exposed to six concentrations: 0.0 g/L (control), 2.0 g/L, 4.0 g/L, 8.0 g/L, 16.0 g/L, and 32.0 g/L (n = 90). The number of dead larvae was counted between 6 and 10 dpf. (C) The survival ratio of zebrafish larvae was calculated and plotted as Kaplan-Meier curves (n = 90). (D) LC₅₀ of A. sinensis leaf extract (n = 90). Here, Aslt represents the A. sinensis leaf extract.
