Figure 4

ID: ZDB-IMAGE-231127-31
Publication: Hall et al., 2023 - Reduction in N-Acetylglucosaminyltransferase-I Activity Decreases Survivability and Delays Development of Zebrafish
All Figures: Figures for Hall et al., 2023


Figure Caption

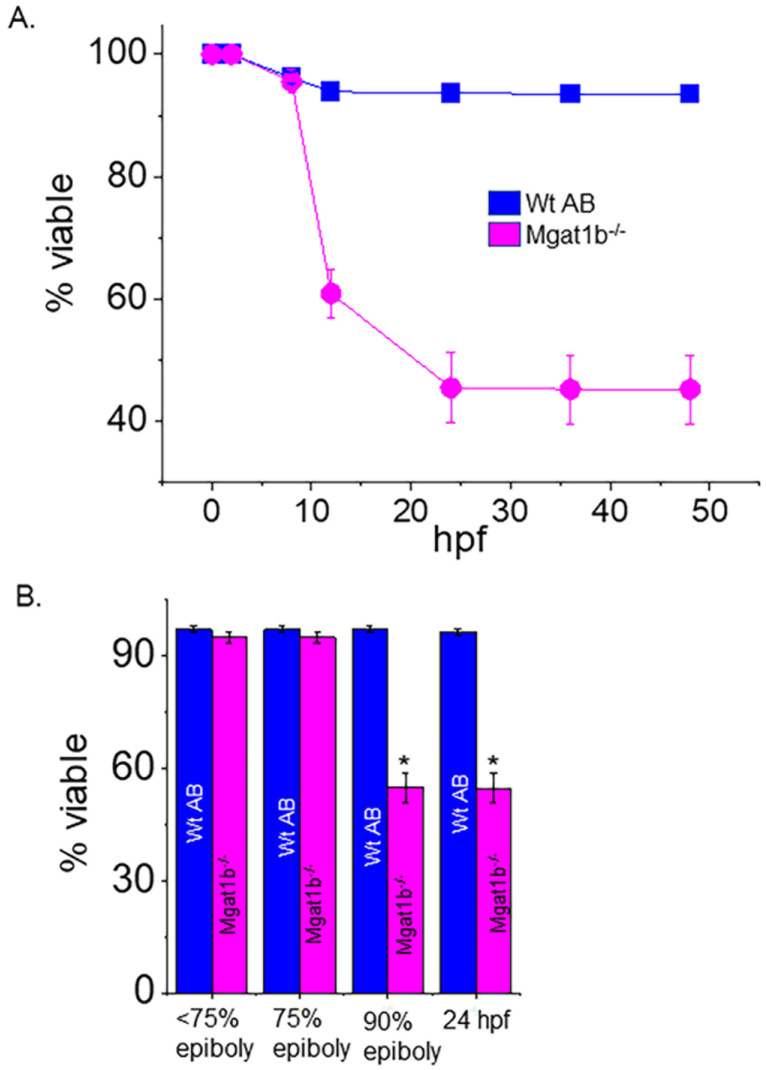

Figure 4

Decline in survivability of Mgat1b^−/− mutants post 75% epiboly relative to Wt AB. Survivability of Wt AB and Mgat1b^−/− zebrafish tracked up to 48 hpf (A). Percent of viable embryos at the various stages of embryogenesis (B). Data are presented as mean ± SEM, n ≥ 8 clutches, and were all compared using Student’s t-test (* p < 0.0001).

Figure Data

Phenotype details
