Figure 7.

ID: ZDB-IMAGE-231124-22
Publication: Celotto et al., 2023 - Single-cell RNA sequencing unravels the transcriptional network underlying zebrafish retina regeneration
All Figures: Figures for Celotto et al., 2023


Figure Caption

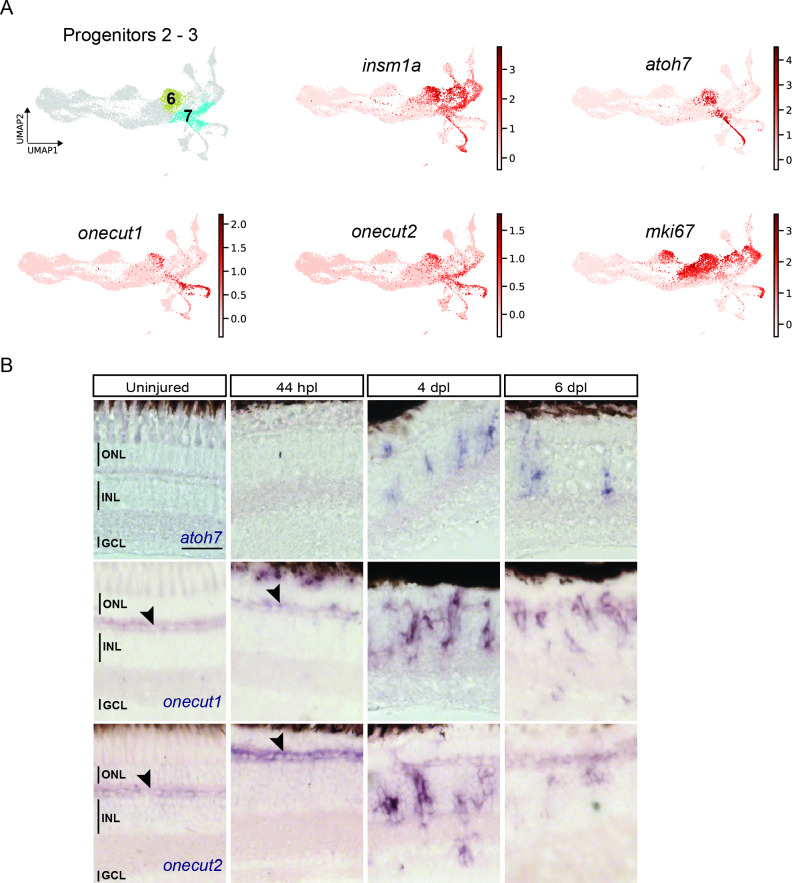

Figure 7. scRNAseq identifies two neurogenic progenitor populations in the light-lesioned retina.

(A) The two progenitor clusters (clusters 6 and 7) and the relative expression levels of insm1a, atoh7, onecut1, onecut2 and mki67. (B) Bright field microscopy images of chromogenic in situ hybridization detecting atoh7, onecut1 or onecut2 on retinal sections of uninjured control animals and at 44 hours post lesion (hpl), 4 days post lesion (dpl) and 6 dpl. Each ISH was carried on N=3 fish per time point and uninjured controls.The position of the outer nuclear layer (ONL), inner nuclear layer (INL), and ganglion cell layer (GCL) is indicated in the uninjured sample. Scale bar: 30 µm.
