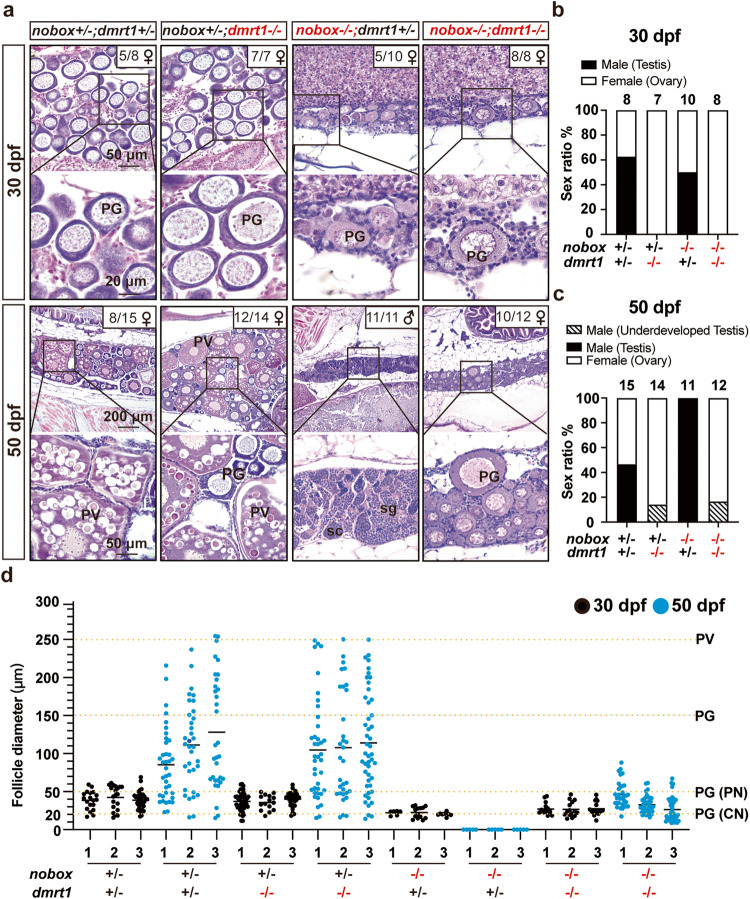

Fig. 2 Rescue of the all-male phenotype of nobox mutant by simultaneous mutation of dmrt1.

a Gonadal histology of nobox mutant and double mutant with dmrt1 mutation in early gonadal differentiation (30 and 50 dpf). b Sex ratio in four different genotypes of nobox and dmrt1 mutations at 30 dpf (nobox+/−;dmrt1+/−: n = 8 independent fish; nobox+/−;dmrt1−/−: n = 7 independent fish; nobox−/−;dmrt1+/−: n = 10 independent fish; nobox−/−;dmrt1−/−: n = 8 independent fish). c Sex ratio in four different genotypes of nobox and dmrt1 mutations at 50 dpf (nobox+/−;dmrt1+/−: n = 15 independent fish; nobox+/−;dmrt1−/−: n = 14 independent fish; nobox−/−;dmrt1+/−: n = 11 independent fish; nobox−/−;dmrt1−/−: n = 12 independent fish). d Follicle composition of different genotypes at 30 and 50 dpf (n = 3 independent fish). The horizontal black lines represent the mean. PN perinucleolar oocytes, CN chromatin nucleolar oocytes.
