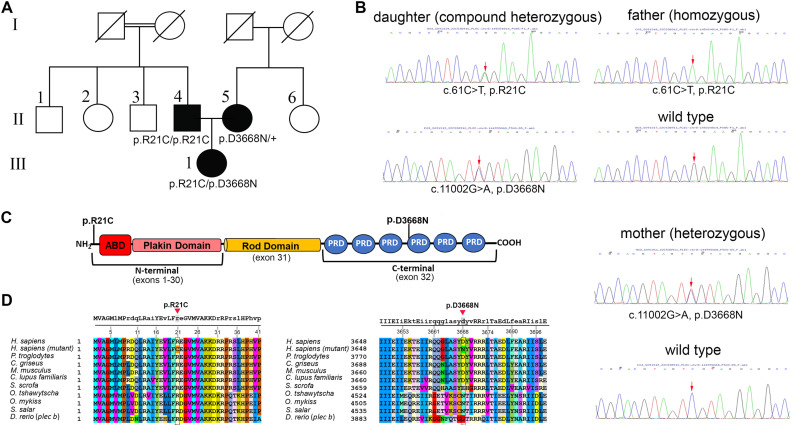

Fig. 2 Pedigree and gene analysis of PLEC in family #2. A: Pedigree of the affected family members. B: Trio whole-exome sequencing analysis was performed on family #2 (father II-4, mother II-5 and daughter III-1). Sanger sequencing confirmed the presence of biallelic PLEC variants in II-4 and III-1 while II-5 was heterozygous carrier of a single mutation. C: Schematic representation of the plectin protein with the newly identified mutations. D: Amino acid alignment of the regions containing the plectin mutations. Capital letters at the top denote conserved amino acids among all the species.
