Fig 8 Chemical composition of the M. bealei extract and activities of major compounds.

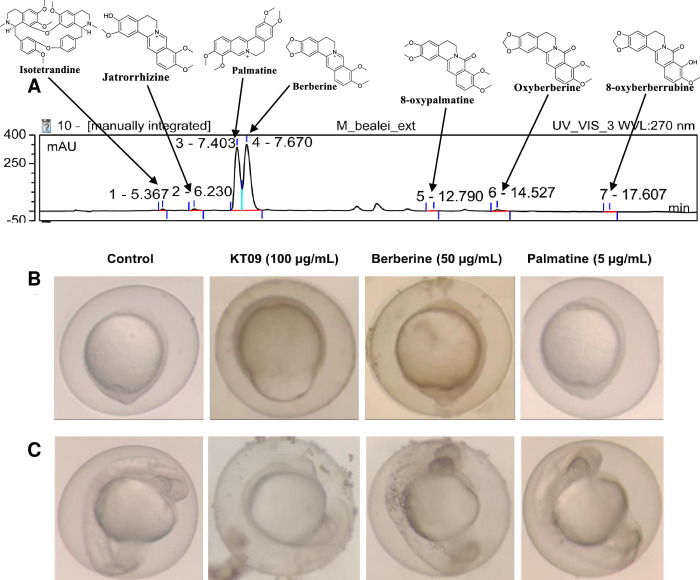

(A) HPLC chromatogram (at UV wavelength 270 nm) of the M. bealei extract is shown. The different detected compounds are indicated by arrows pointing at the corresponding peaks, with the two major peaks (peaks 3 and 4) corresponding to, respectively palmatine and berberine, while minor peaks (vertical ticks) correspond to jatrorrhizine, isotetradine, 8-oxypalmatine, oxyberberine, and 8-oxyberberrubine (B, C) Representative images of 10 hpf (B) and 24 hpf (C) zebrafish embryos exposed to M. bealei crude extract, berberine, or palmatine at the indicated concentrations.
