Figure 6

ID: ZDB-IMAGE-231006-7
Publication: Man et al., 2023 - Cell-type expression and activation by light of neuropsins in the developing and mature Xenopus retina
All Figures: Figures for Man et al., 2023


Figure Caption

Figure 6

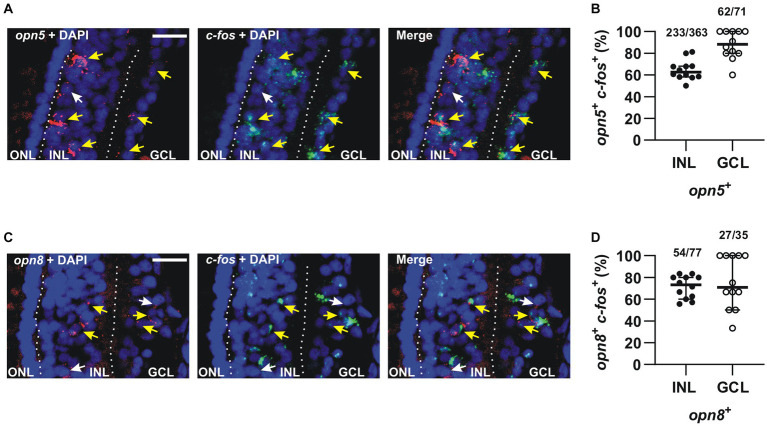

The majority of opn5⁺ and opn8⁺ cells were activated in response to light. (A,C) Double FISH against opn5 (red) and c-fos (green) (A) and opn8 (red) and c-fos (green) (C) on stage 43/44 Xenopus laevis transverse retinal sections after 30 min of light stimulation. DAPI (blue) stains the nucleus. White arrows point to opn5⁺ or opn8⁺ cells that do not express c-fos, while yellow arrows point to opn5⁺ or opn8⁺ cells that are also c-fos⁺. GCL, ganglion cell layer; INL, inner nuclear layer; ONL, outer nuclear layer. Scale bar = 50 μm. (B,D) Quantification and distribution between the INL and GCL of cells co-expressing opn5 and c-fos (B) and opn8 and c-fos(D). Each dot represents the percentage of cells in one central retina section n = 12 sections; Lines are the mean with 95% confidence interval.
