Figure 2

ID: ZDB-IMAGE-231002-341
Publication: Farre et al., 2023 - Plasticity of cone photoreceptors in adult zebrafish revealed by thyroid hormone exposure
All Figures: Figures for Farre et al., 2023


Figure Caption

Figure 2

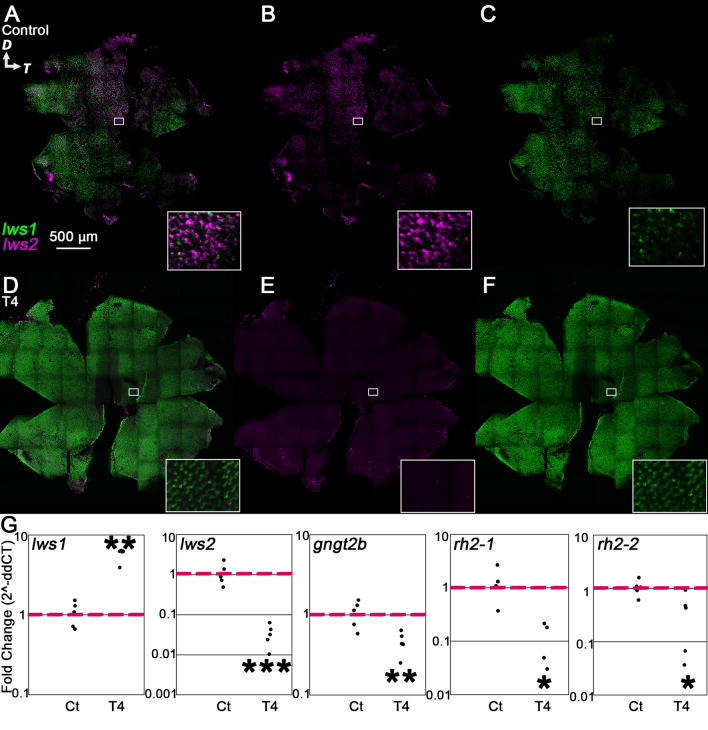

Plasticity of cone transcripts in response to 5 days of T4 treatment. (A–F) Projections of representative whole, imaged retinas from fish treated with NaOH (control, A–C) or T4 (treated, D–F) followed by HCR in situ. Insets show indicated regions enlarged by 1400%. (A,D) All imaging channels merged. (B,E) lws2 (C,F) lws1. Note expanded lws1 domain and lack of lws2 mRNA in T4-treated retina. (G) qPCR of whole adult eyes. (lws1) n = 5, p = 0.0079 (Mann–Whitney). (lws2) n = 5, p = 1.2749E−05 (t-test). (gngt2b) n = 5, p = 0.0025 (t-test). (rh2-1) n = 4, p = 0.0168 (t-test). rh2-2) n = 5, p = 0.0355 (t-test). D dorsal, T temporal.
