Fig. 4

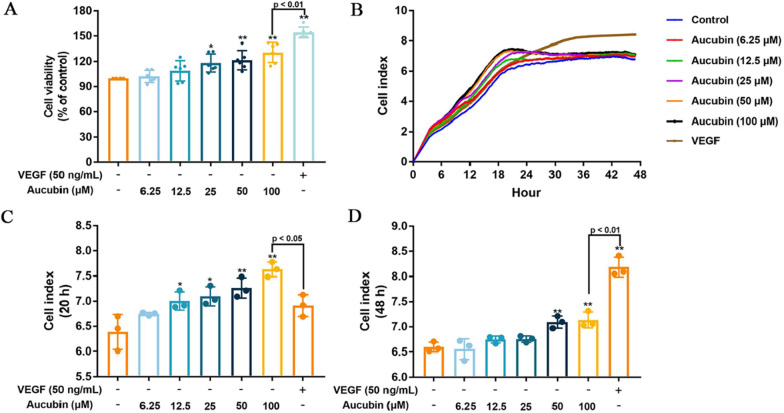

Effects of aucubin on proliferation in HUVECs. HUVECs were treated with different concentrations of aucubin (6.25–100 µM). A Cell viability was measured by CCK8 assays. B The xCELLigence Real-time cell analysis (RTCA) system showed the data of cell index curves of HUVECs reflected their proliferation in real-time mode. The cell index after aucubin administration at 20 h (C) and 48 h (D) were analyzed. Data are presented as the percentage of the control group (mean ± SD of three or six independent trials). **p < 0.01 versus the control group
