Fig. 3

ID: ZDB-IMAGE-230916-290
Publication: Elsaid et al., 2023 - Proteomic analysis unveils Gb3-independent alterations and mitochondrial dysfunction in a gla^-/- zebrafish model of Fabry disease
All Figures: Figures for Elsaid et al., 2023


Figure Caption

Fig. 3

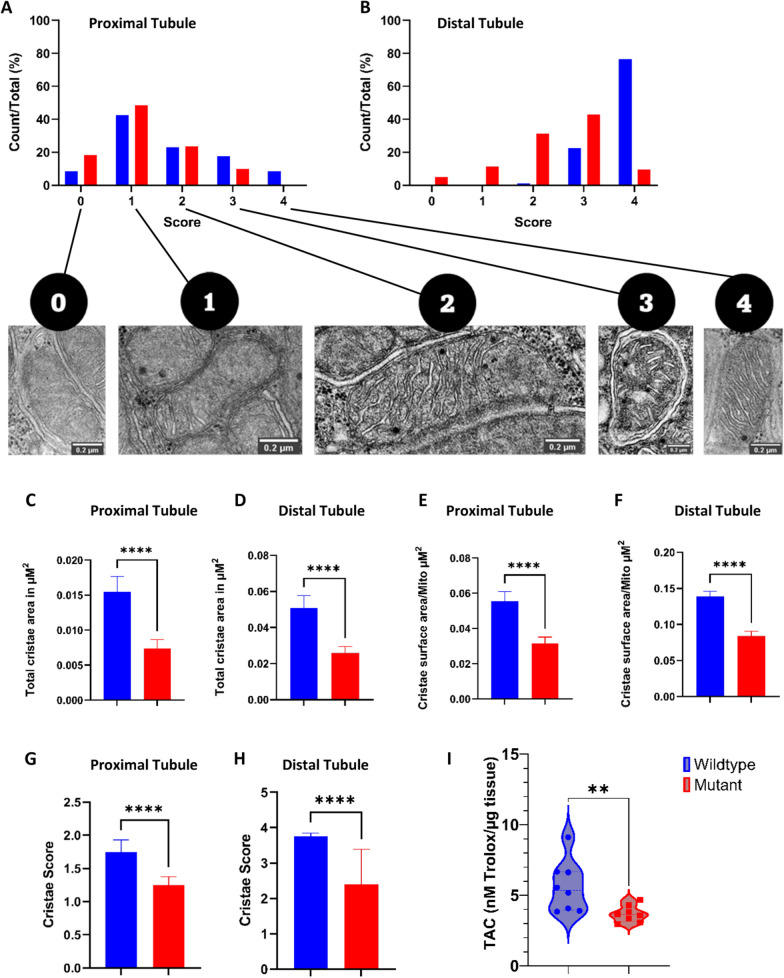

Mitochondrial cristae morphology and area determination in proximal and distal tubules performed using TEM images and total antioxidant determination (TAC) in wild-type and GLA-mutant Zebrafish. A, B Individual score grades across the whole mitochondrial population analyzed in cells from renal proximal and distal tubules; C, D Total cristae area in cells from proximal and distal tubules; E, F Cristae volume in proximal and distal renal tubules; G, H Cumulative cristae mean scores for proximal and distal renal tubules, I TAC levels in adult (9-months-old) zebrafish kidney tissue lysates. For mitochondria cristae morphology quantification data represented as mean with upper 95% confidence interval. For TAC values are represented as violin plot representing the median and IQ ranges. Data were analyzed using Mann–Whitney test; ****p-value ≤ 0.00001; **p-value ≤ 0.001
