FIGURE 6

ID: ZDB-IMAGE-230916-24
Publication: DeMoya et al., 2023 - Sin3a associated protein 130 kDa, sap130, plays an evolutionary conserved role in zebrafish heart development
All Figures: Figures for DeMoya et al., 2023


Figure Caption

FIGURE 6

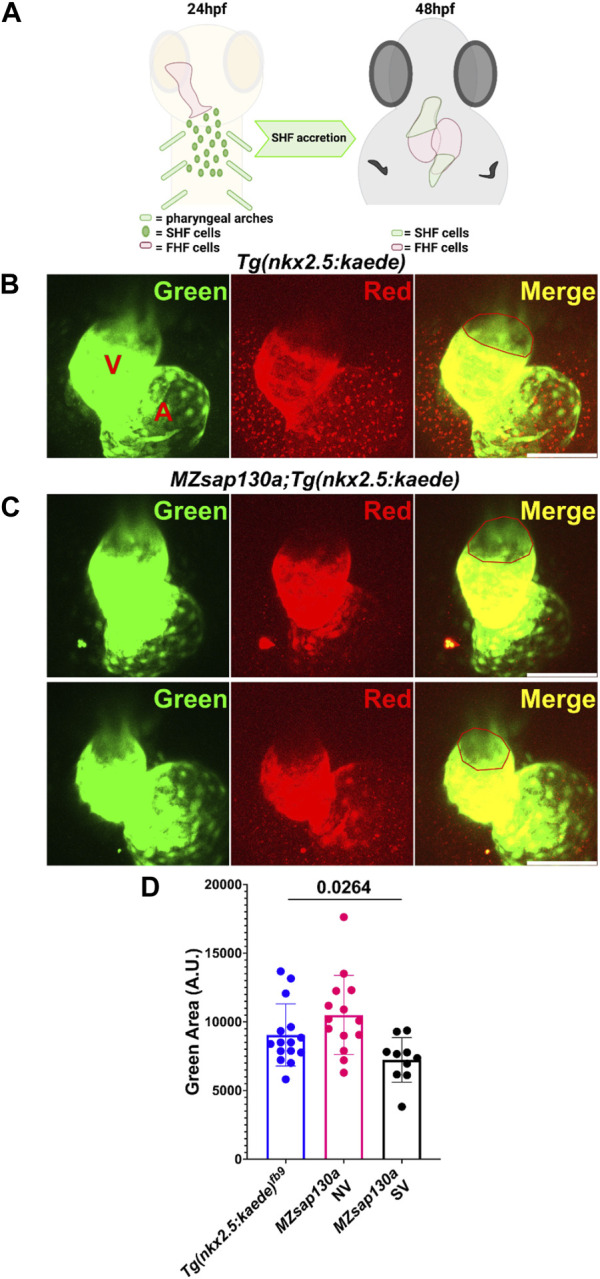

Lineage tracing reveal changes to SHF in MZsap130a at 48hpf (A) Diagram showing how the FHF heart tube at 24hpf was photoconverted to red, leaving SHF progenitors unlabeled in green and imaging at 48hpf. (B, C) Confocal imagines of Tg(nkx2.5:kedge) and MZsap130a;Tg(nkx2.5:kedge) at 48hpf with the heart tube being photoconverted at 24hpf, the red outlined region represents area measurements collected. (D) Quantified SHF (green area) accreted by 48hpf, pval is from a one ANOVA, error bars are SEM. Each point represents a single embryo, Tg(nkx2.5:kedge), n = 15; MZsap130a;Tg(nkx2.5:kedge) NV, n = 14; MZsap130a;Tg(nkx2.5:kedge) SV, n = 10. V and A are ventricle and atria, respectively. Scale bar 100 μm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Cell Dev Biol
