Figure 4

ID: ZDB-IMAGE-230828-44
Publication: Nieoczym et al., 2023 - In Silico Analysis, Anticonvulsant Activity, and Toxicity Evaluation of Schisandrin B in Zebrafish Larvae and Mice
All Figures: Figures for Nieoczym et al., 2023


Figure Caption

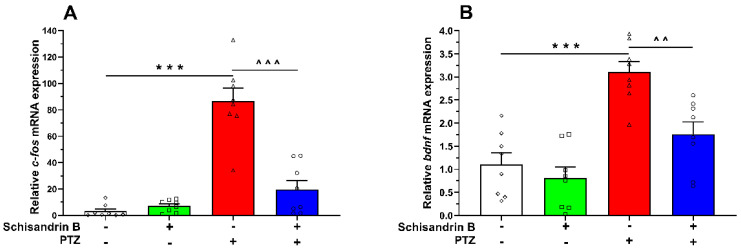

Figure 4

The effect of schisandrin B on c-fos (A) and bdnf (B) mRNA expressions in PTZ-bathed larval zebrafish. Six-day-old fish were incubated with schisandrin B (3 µM) for 24 h and subsequently exposed to PTZ (20 mM). After a 90 min delay, fish were collected and pooled (10/sample). Data were analyzed using one-way ANOVA with the Tukey’s post hoc test. Data are depicted as individual measurements (as symbols) and mean + SEM (n = 8/group). *** p < 0.001 vs. vehicle + vehicle; ^{^^^}p < 0.001, ^{^^} p < 0.01 vs. vehicle + PTZ. PTZ − pentylenetetrazole.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
