Figure 12

ID: ZDB-IMAGE-230828-42
Source: Figures for Nieoczym et al., 2023


Figure Caption

Figure 12

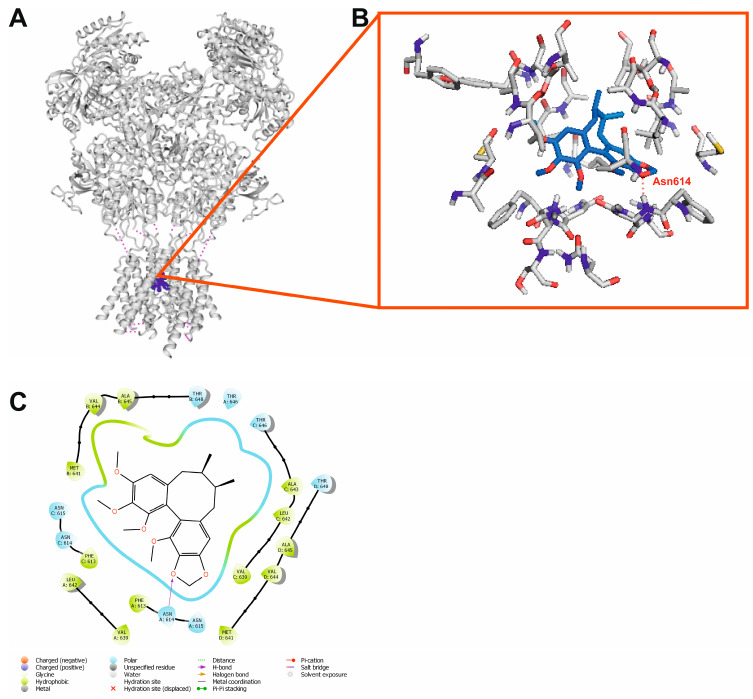

Molecular interactions of schisandrin B with NMDA receptor based on molecular docking. (A) Overview of ligand pose in the receptor. Receptor shown in gray in cartoon representation, ligand shown as blue balls; (B) 3D details of the binding site. The most important protein residues are shown as sticks with gray carbon atoms. Ligand shown as sticks with blue carbon atoms. Polar interactions shown as red dashed lines; (C) 2D overview of the binding site.
