Figure 2

ID: ZDB-IMAGE-230828-41
Publication: Nieoczym et al., 2023 - In Silico Analysis, Anticonvulsant Activity, and Toxicity Evaluation of Schisandrin B in Zebrafish Larvae and Mice
All Figures: Figures for Nieoczym et al., 2023


Figure Caption

Figure 2

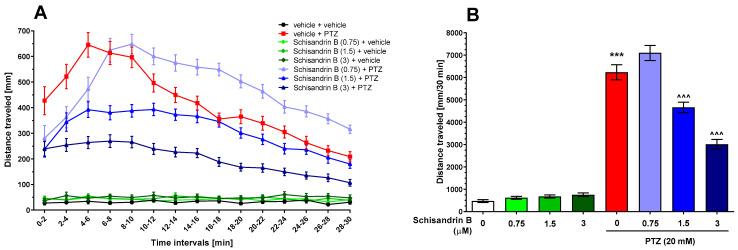

The effect of schisandrin B (0.75–3 µM) on PTZ-induced seizure-like activity in zebrafish larvae. The data are expressed as distance traveled (in mm) by larvae in 2 min-long time bins (A); total distance covered by larvae during 30 min of the assay (B). Data are analyzed using two-way or one-way ANOVAs with Bonferroni’s or Tukey’s post hoc tests, respectively. Data are presented as mean ± standard error of the mean (SEM). Group schisandrin B 3 µM + vehicle consisted of 36 zebrafish larvae, group schisandrin B 0.75 µM + PTZ consisted of 46 larvae, and the remaining experimental groups had 48 zebrafish larvae. *** p < 0.001 vs. vehicle + vehicle-treated group; ^{^^^} p < 0.001 vs. vehicle + PTZ-treated group. PTZ, pentylenetetrazole.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
