Figure 6

ID
ZDB-IMAGE-230731-14
Publication
Sun et al., 2023 - lmo4a Contributes to Zebrafish Inner Ear and Vestibular Development via Regulation of the Bmp Pathway
All Figures
Figures for Sun et al., 2023
Figure Caption

Figure 6

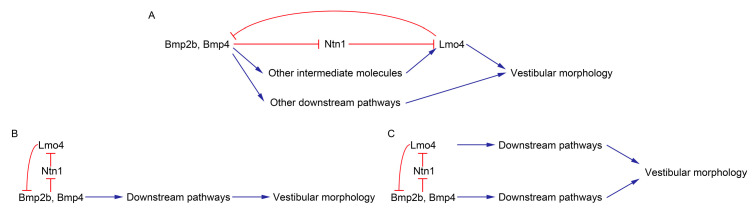

Potential molecular mechanisms linking Bmps and lmo4a. (A) Lmo4 acts downstream of the Bmp signaling pathway. (B) Lmo4 acts as a regulator of Bmps. (C) Lmo4 and Bmps function in two parallel pathways with mutual regulatory interactions.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Genes (Basel)
