Figure 2

ID
ZDB-IMAGE-230731-11
Source
Figures for Sun et al., 2023
Figure Caption

Figure 2

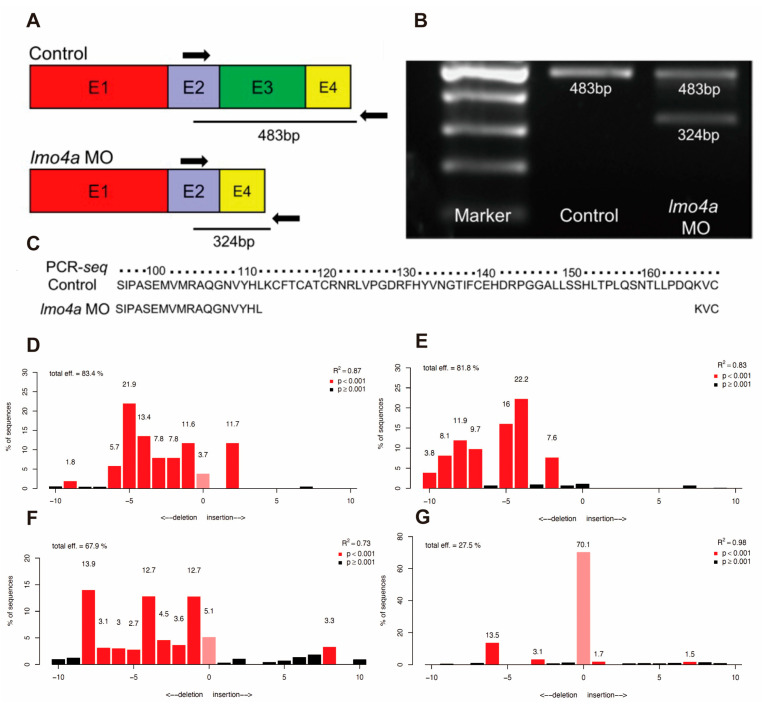

Morpholino-targeted knockdown and targeted knockout of lmo4a. (A) Bands of 483 bp and 324 bp represent correctly spliced and artificially mis-spliced lmo4a mRNA. Colored boxes indicate exons. Arrows signify primers used for RT-PCR and the black bar depicts lmo4a MO. (B) Protein alignment including the truncated protein generated by lmo4a MO. (C) RT-PCR of control embryos and those injected with 2 pg lmo4a MO showing effective but incomplete disruption of splicing (m, 100 bp ladder marker). (DG) PCR and Sequencing analysis showing the lmo4a knockout efficiencies of the four gRNA targets.
