Figure 2

ID: ZDB-IMAGE-230711-1
Publication: Kuil et al., 2023 - Unbiased characterization of the larval zebrafish enteric nervous system at a single cell transcriptomic level
All Figures: Figures for Kuil et al., 2023


Figure Caption

Figure 2

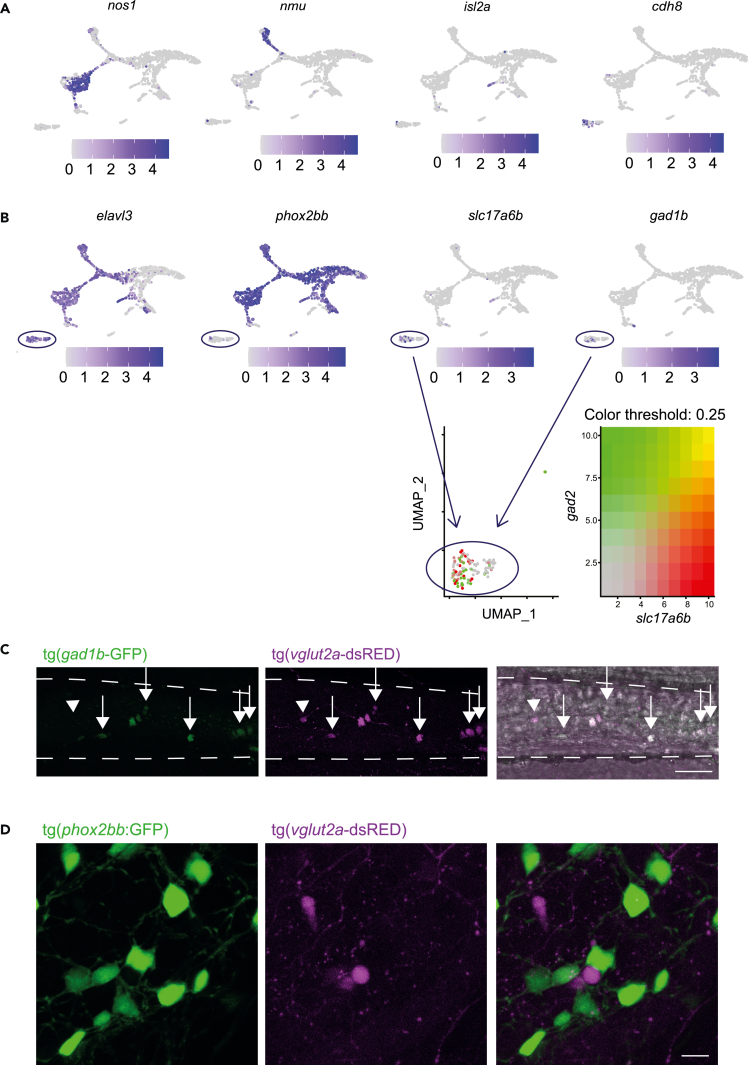

The 5 dpf intestine contains four clusters of differentiated neurons including a cluster of elavl3+; phox2bb-enteric neurons showing excitatory and inhibitory gene expression

(A) Featureplots of genes defining four clusters of differentiated neurons.

(B) Featureplots highlighting the presence of a cluster of cells expressing elavl3, slc17a6b and gad1b, but lacking expression of phox2bb (phox2bb-differentiated neurons, depicted by the circle).

(C) Maximum projections of live imaging recordings from 7 dpf tg(gad1b:GFP); tg(vglut2a-dsRed) larval intestine shows overlap between the two reporters (arrows) with one gad1b+ cell that is vlgut2- (arrowhead). Scale bar represents 40 μm.

(D) Maximum projections of live imaging recordings from 7 dpf tg(phox2bb:GFP); tg(vglut2a-dsRed) larval intestine shows no overlap between the two reporters. Scale bar represents 20 μm.
