Figure 4

ID: ZDB-IMAGE-230630-95
Source: Figures for Henderson et al., 2023


Figure Caption

Figure 4

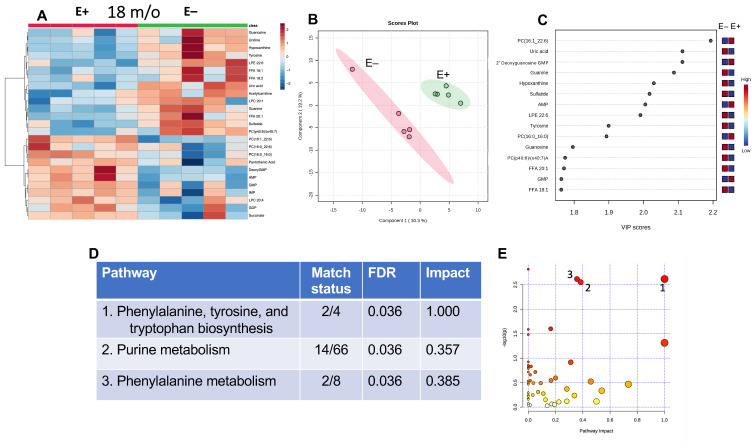

Metabolomic differences between E+ and E− fish muscles at 18 months. Shown are the heatmap (A) PLS-DA scores plot (B) and VIP scores (C). The table (D) lists the top values shown in the graph of pathway analysis. (E) displays pathway analysis by ranking metabolites by p-value (shown as −log10(p)) and pathway impact referenced against the KEGG Pathway Database. Red indicates highest impacts, clear the lowest, yellow and orange are intermediate.
